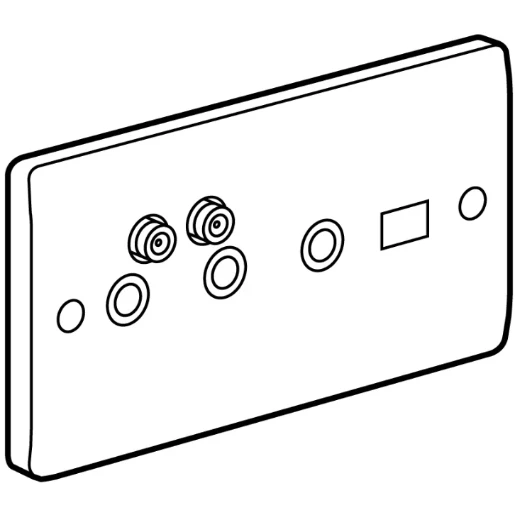

Socket Triplex TV/FM/Satel/Extra Sat 86 x 146mm White
Part Number:
2500162586
MPN:
730045
- Product Type:
- White Moulded Slimline
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
piece
Min: 1 piece
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
- · Colour: White
- · Min Box Depth: 35mm
Technical Specifications
Technical Specifications
Antenna socket | |
| Degree of protection (IP rating) | IP21 |
|---|---|
| Type of socket outlet | TV/RD/SAT |
| Mounting method | Flush mounted |
| Impact resistance (IK rating) | IK04 |
| Model | End socket |
| Number of outlets | 3 |
| Tap loss at 2150 MHz | 2 dB |
| Tap loss at 860 MHz | 1.5 dB |
| Minimum depth of back box | 40 mm |
| Through loss at 860 MHz | - dB |
| Width of device | 86 mm |
| Through loss at 2150 MHz | - dB |
| Depth of device | 33 mm |
|---|---|
| Height of device | 86 mm |
| RAL-number (similar) | - |
| Number of module spaces (modular system) | - |
| Radio frequency band | - - - MHz |
| TV frequency band | - - - MHz |
| SAT frequency band | - - - MHz |
| Suitable for remote power supply | Yes |
| Suitable for cable modem | No |
| DAB+ | No |
| Antibacterial treatment | No |
| Halogen free | Yes |
