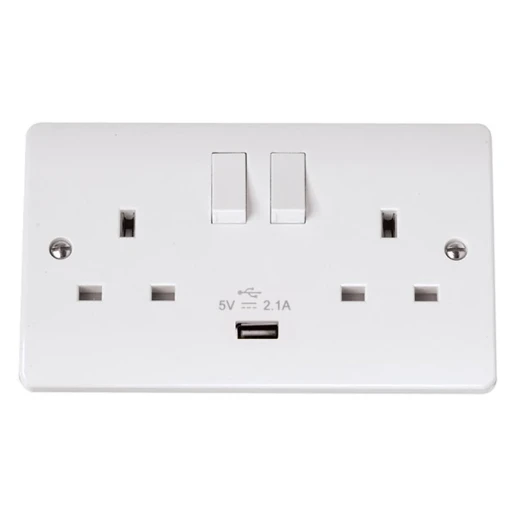

Socket 2 Gang Switched USB Outlet 13A 2.1A White
Part Number:
2500826154
MPN:
CMA770
- Product Type:
- White Moulded Slimline
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Scolmore Curva Series Switched Socket comes with 1xUSB outlet. Curva 13A Socket is tested and approved to BS1363 offering assured quality and safety. The provision of a large earth terminal on socket as standard. Twin Earth terminals for a simple connection of the Earth conductor. Can be mounted into 25mm backbox. USB socket ranges benefit from short circuit protection.
- · Load Rating 13A
- · Switched Yes
- · Switched Yes
- · USB Output Connector USB Type "A
- · USB Standby Current 2mA
- · USB Charging Outlet 5V DC, 2.1A
- · Back Box Depth 25mm 47mm
- · Maximum Voltage 250V
- · Plate Fixing Centres 120.6mm
Technical Specifications
Technical Specifications
Socket outlet | |
| Colour of rocker/switch operator | White |
|---|---|
| Colour | White |
| Minimum depth of back box | 25 mm |
| Number of active contacts (rectangular) | 3 |
| Number of switchable socket outlets | 2 |
| Nominal voltage | 250 V |
| Number of phases | 1 |
| Width of device | 146 mm |
| Depth of device | 35.8 mm |
| Number of USB-A ports | 1 |
| Height of device | 86 mm |
| Frequency | 50 - 50 Hz |
| Nominal current | 13 A |
| Label space/information surface | No |
| Eject-mechanism | No |
| With enhanced contact protection | No |
| With hinged lid | No |
| Lockable | No |
| With indicator lamp | No |
| Over voltage-/surge protection | No |
|---|---|
| With on/off switch | Yes |
| Insulated mounting | No |
| Halogen free | No |
| IFTTT support available | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Transparent | No |
| Fault current protection | No |
| Rotated central insert | No |
| Antibacterial treatment | No |
| With miniature fuse | No |
| With orientation lighting | No |
| With loop through function | No |
| With function lighting | No |
| Metallic | No |
| For heavy conditions (in accordance with VDE) | No |
