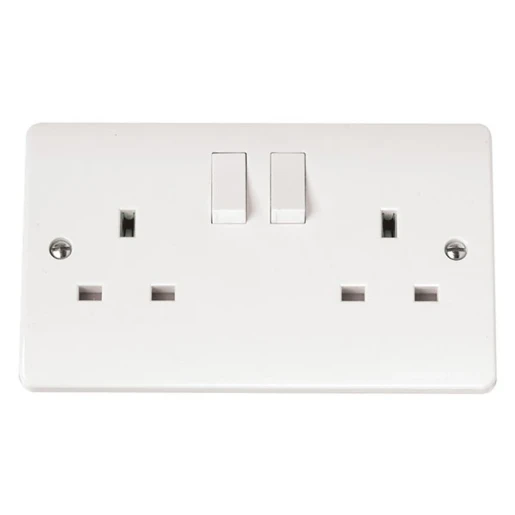

Socket 2 Gang Switched Twin DP 13A Slimline Curved Edge White
Part Number:
2500225234
MPN:
CMA036
- Product Type:
- White Moulded Slimline
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
CMA036 13A white Socket, 2 Gang DP Switched
- · BS 1363, Modified ISO 22196
- · Plain annealed copper conductors
- · Plain annealed copper conductors
- · Modified ISO 22196
- · Fixing Centres 120.6mm

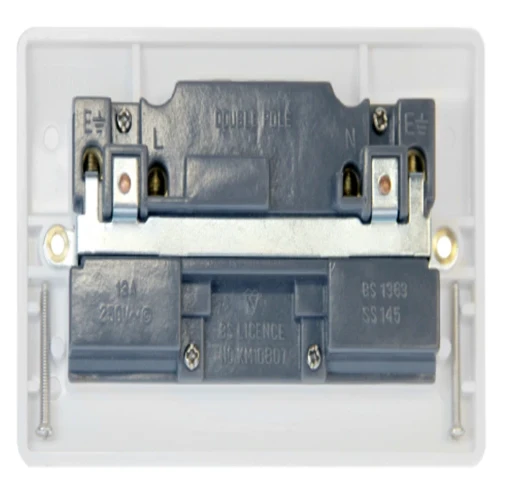

- · Twin earth terminals
- · Terminal Capacity 4 x 2.5mm2 , 2 x 4mm2
- · 20 year warranty
- · BS 1363-2: 2016 +A1: 2018
- · Back Box Depth 25mm Minimum
Frequently Bought Together
Current Product
Click
Socket 2 Gang Switched Twin DP 13A Slimline Curved Edge White
Error while fetching price from ERP!
Click Scolmore
Front Plate 2 Gang 6 Aperture White
Error while fetching price from ERP!
Qty: 1
Click
Plate Switch 4 Gang 2 Way 10AX White
Error while fetching price from ERP!
Qty: 1Technical Specifications
Technical Specifications
Socket outlet | |
| Material | Plastic |
|---|---|
| Colour | White |
| Width of device | 146 mm |
| Colour of rocker/switch operator | White |
| Minimum depth of back box | 25 mm |
| Number of phases | 1 |
| Number of active contacts (rectangular) | 3 |
| Height of device | 86 mm |
| Number of switchable socket outlets | 2 |
| Depth of device | 30.7 mm |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Frequency | 50 - 50 Hz |
| With hinged lid | No |
| With enhanced contact protection | No |
| Label space/information surface | No |
| Lockable | No |
| With indicator lamp | No |
| Eject-mechanism | No |
| Rotated central insert | No |
|---|---|
| Insulated mounting | No |
| With miniature fuse | No |
| Fault current protection | No |
| With orientation lighting | No |
| Over voltage-/surge protection | No |
| With on/off switch | Yes |
| Halogen free | No |
| IFTTT support available | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Transparent | No |
| Antibacterial treatment | No |
| With loop through function | No |
| With function lighting | No |
| For heavy conditions (in accordance with VDE) | No |
| Metallic | No |
