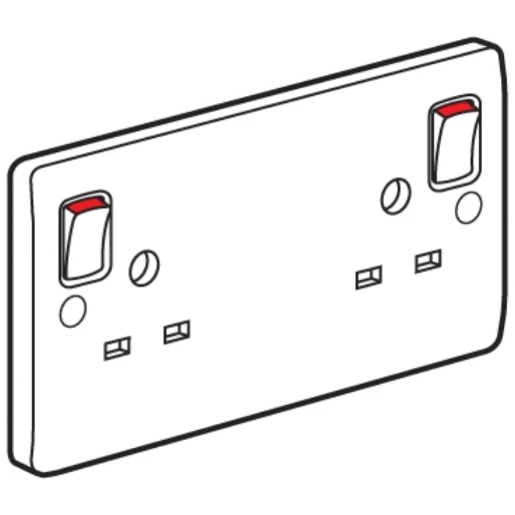

Socket 2 Gang Switched DP Non Standard 13A White Earth Pin
Part Number:
2500162662
MPN:
730077
- Product Type:
- White Moulded Slimline
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
- · Colour: White
- · Min Box Depth: 35mm
Technical Specifications
Technical Specifications
Socket outlet | |
| Type of fastening | Mounting with screw |
|---|---|
| Material | Plastic |
| Protective contact | Round |
| Degree of protection (IP rating) | IP2X |
| Material qualifier | Thermoplastic |
| Connection type | Screwed terminal |
| Colour | White |
| Mounting method | Flush mounted |
| Model | British Standard |
| Special power supply | No special power supply |
| Surface protection | Untreated |
| Impact resistance (IK rating) | IK01 |
| Nominal current | 13 A |
| Surface finish | Glossy |
| Nominal voltage | 250 V |
| Number of module spaces (modular system) | - |
| Minimum depth of back box | - mm |
| RAL-number (similar) | 9003 |
| Number of USB-A ports | 0 |
| Rated fault current | - mA |
| Number of phases | 1 |
| Height of device | 86 mm |
| Number of active contacts (round) | 0 |
| Number of active contacts (rectangular) | 1 |
| Number of loop throughs | - |
| Width of device | 146 mm |
| Number of active contacts (square) | - |
| Depth of device | 30 mm |
| Maximum current rating of USB power supply | - A |
| Number of USB-C ports | 0 |
| Number of switchable socket outlets | 2 |
|---|---|
| Frequency | 50 - 60 Hz |
| IFTTT support available | No |
| Concurrently switching N-neutral | No |
| Metallic | No |
| With Wi-Fi signal extender | No |
| For heavy conditions (in accordance with VDE) | No |
| With orientation lighting | No |
| With function lighting | No |
| With miniature fuse | No |
| With built-in bluetooth speaker | No |
| Compliant with Building Regulations Part M | No |
| Compatible with Apple HomeKit | No |
| Label space/information surface | No |
| Eject-mechanism | No |
| With hinged lid | No |
| Lockable | No |
| Halogen free | Yes |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Transparent | No |
| Antibacterial treatment | No |
| With indicator lamp | No |
| Over voltage-/surge protection | No |
| Rotated central insert | No |
| Fault current protection | No |
| With on/off switch | Yes |
| Insulated mounting | No |
| With enhanced contact protection | Yes |
| With loop through function | Yes |
