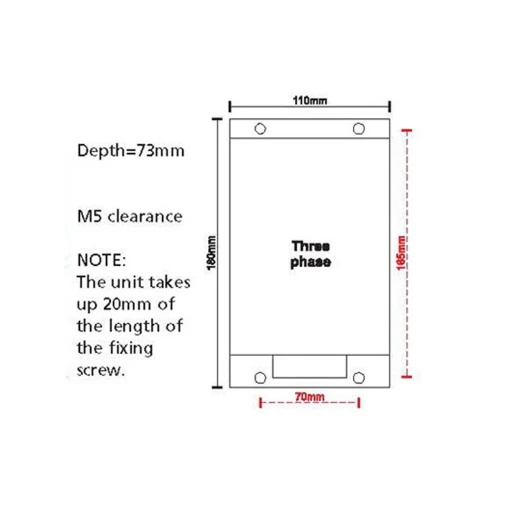

ESP 415M1 Surge Protective Device
Part Number:
2500060298
MPN:
7TCA085460R0112
- Product Type:
- Surge Protection
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
This Surge Protection Device is suitable for use in 415V mains power distribution system to protect connected electronic equipment from transient overvoltage on the mains supply, e.g. computer, communication or control equipment.
- · Unique flashing warning of potentially fatal neutral to earth supply fault
- · Robust steel housing and Maintenance free
- · Simple parallel connection
- · Base provides ultra-low inductance earth bond to metal panels
- · Compact size for installation in the power distribution board
- · Changeover active volt free contact enables the protector to be used to warn of phase loss
Technical Specifications
Technical Specifications
Surge protection device for power supply systems | |
| Signalling at the device | Optic |
|---|---|
| Degree of protection (IP rating) | IP20 |
| Max. conductor cross section flexible (fine-strand) | 16 mm² |
| Max. conductor cross section solid (solid, stranded) | 16 mm² |
| Voltage protection level L-N | 0.9 kV |
| Max. PV-voltage | - V |
| Voltage protection level N-PE | 0.9 kV |
| Max. continuous voltage DC | - V |
| Max. discharge surge current (8/20) | 40 kA |
| Short-circuit breaking capacity (Isccr) | 25 kA |
| Max. overcurrent protection device, parallel connection (fuse) | - A |
| Max. overcurrent protection device, series connection (fuse) | - A |
| Voltage protection level | 0.9 kV |
| Nominal voltage AC | 240 V |
| Nominal voltage DC | - V |
| Nominal discharge surge current 8/20 µs (In) | 20 kA |
| Max. voltage (Uc) | 280 V |
|---|---|
| Number of conductors (without earthing) | 4 |
| Integrated short-circuit protection selective to fuse gG | - A |
| With remote signalling contact | No |
| System configuration TN-C | Yes |
| System configuration TN-S | Yes |
| System configuration IT | No |
| System configuration TN | Yes |
| System configuration DC | No |
| Integrated backup fuse | Yes |
| Type / Test class 2 | Yes |
| System configuration TT | No |
| System configuration other | No |
| System configuration TN-C-S | Yes |
| Integrated short-circuit protection | No |
| Leakage-current free | No |
