Product Details
Product Details

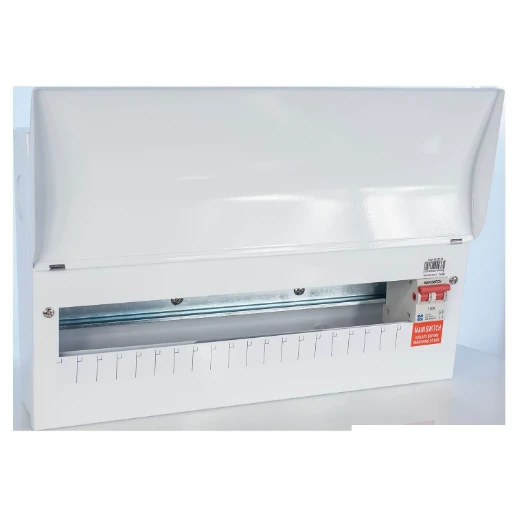

A fully comprehensive PRO RCBO Based Solution, comprising a 100A DP main switch with overload and residual current protection provided on each individual final circuit by RCBOs. Distributing final circuits across individual RCBOs provides the best approach to fully meeting the requirements of BS7671. Supplied with 100A rated Mains Switch and distribution bus bar, Overcurrent and 30mA earth leakage fault protection combined in one device, Class A residual current protection as standard, 6kA Short circuit breaking capacity. Energy limiting class 3, B or C curve overcurrent trip options, Fully interchangeable switched and un-switched neutral pole RCBO options & with ratings from 6A to 50A.
- · Configured with 100A DP Main Switch
- · +1 Extra module included for the installation of a surge protection device
- · Designed with the Installer in mind, providing an easy to install consumer unit, meeting the requirements of the latest 18th Edition Wiring Regulations in a stylish, non-obtrusive range of Enclosures.
- · Supplied complete with main switch.
Technical Specifications
Technical Specifications
Small distribution board equipped | |
| Depth | 106 mm |
|---|---|
| Width | 443 mm |
| Height | 266 mm |
| Width in number of modular spacings | - |
| Number of poles main switch | - |
| Number of earth leakage circuit breakers | - |
| Number of earth leakage switches 300 mA | - |
| Number of light groups | - |
| Number of groups behind earth leakage switch | - |
| Number of outgoing ways | 19 |
| Number of earth leakage switches 30 mA | - |
| Total number of groups | - |
| Number of arc fault detection devices AFDD | - |
| Main switch rated current | 100 A |
| Number of phases | - |
| Number of direct groups | - |
| Built-in depth | - mm |
|---|---|
| Extension possible | No |
| With metering | No |
| Cooker group suitable as power current group | No |
| With bell transformer | No |
| Protection high integrity | No |
| Protection incoming RCD | No |
| Over voltage-/surge protection | No |
| Suitable for data | No |
| Protection dual RCD | No |
| Protection main switch | Yes |
| Protection split load | No |
| Lockable | No |
| With transparent cover | No |
| With socket outlet | No |
