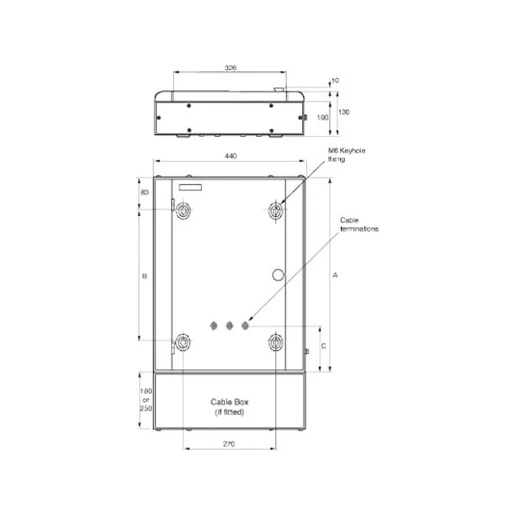

Distribution Board 18Way Triple Pole+Neutral 250A

Part Number:

2500329716

MPN:

EBM182H

To view pricing, availability, and special offering, click the button below and log in.

Product Details

MEM B distribution board; 18-way TPN

· Removable busbar assembly to assist installation
· Improved neutral cable clamp design for simple and secure cable connection
· Interlinking form for improved positional security
· 18 Ways
· Removable gland plates are provided top/bottom for ease of installation
· Removable front door to aid accessibility to devices
· Covers fit within enclosure dimensions allowing adjacent mounting
· Modern, curved edges enhance appearance of board
· Secondary cover, slides over two location screws at bottom of board for easier fastening
· These boards include 2 TPN outgoing ways for 27mm MCB (upto 125A)

Current Product

Eaton

Distribution Board 18Way Triple Pole+Neutral 250A

Selected

Eaton

RCBO Single Pole&Neutral Type C 6A 30mA 10kA

Qty: 1

Selected

Eaton

Incomer Kit MCCB Triple Pole 250A

Qty: 1

Small distribution board
Colour	Grey
Housing material	Steel
Degree of protection (IP rating)	IP40
Type of covering	Door
Cover model	Closed
RAL number	7004
Mounting method	Surface mounted
Width	440 mm
Height	1342 mm
Depth	130 mm
Number of rows	2
Recess depth	130 mm
Recess height	1342 mm


Internal depth	100 mm
Recess width	440 mm
Width in number of modular spacings	57
With mounting plate	No
Transparent cover/door	No
Earthing terminal block	No
Neutral terminal block	No
With DIN-rail	No
Signal passing door	No
With lock	No
Extension possible	No
EMC-version	No
