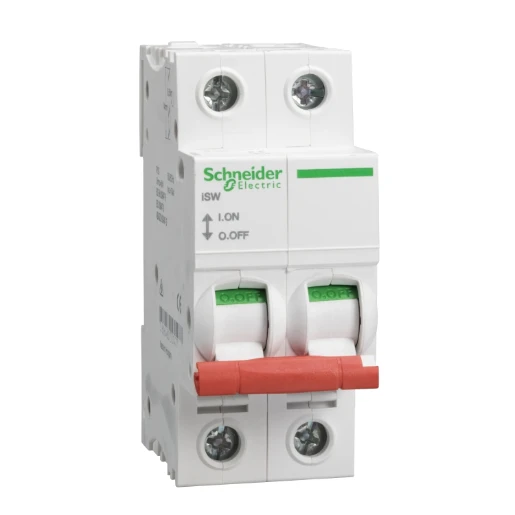

Switch Disconnector Double Pole 125A
Part Number:
2500584150
MPN:
SEA91252
- Product Type:
- Miniature Circuit Breakers
My Price
£30.86 (exc. VAT) / EA
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
This Acti9 iSW product is a modular and reliable switch disconnector. It is a 2 poles switch disconnector with 125A rated operational current (le). The rated operational voltage (Ue) is up to 415VAC. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It is compatible with the use of a distribution board.
- · Triple Pole Incoming Switch
- · VisiTrip
- · Super immunisation
Frequently Bought Together
Current Product
Schneider Electric
Switch Disconnector Double Pole 125A
Error while fetching price from ERP!
Schneider Electric
Distribution Board Single Pole 6Way Type A 125A 300 x 273 x 117mm
Error while fetching price from ERP!
Qty: 1
Schneider Electric
RCCB Double Pole 100A 30mA 36 x 91 x 73.5mm
Error while fetching price from ERP!
Qty: 1Technical Specifications
Technical Specifications
Switch disconnector / isolator | |
| Number of poles | 2 |
|---|---|
| Rated permanent current Iu | 125 A |
| Max. rated operation voltage Ue AC | 240 V |
| Rated operating voltage | 230 - 230 V |
| Version as reversing switch | No |
| Motor drive optional | No |
| Voltage release optional | No |
| Interlockable | Yes |
| Suitable for intermediate mounting | Yes |
| Suitable for distribution board installation | Yes |
|---|---|
| Version as emergency stop installation | No |
| Version as maintenance-/service switch | Yes |
| Version as safety switch | No |
| Motor drive integrated | No |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | Yes |
| Version as main switch | Yes |
