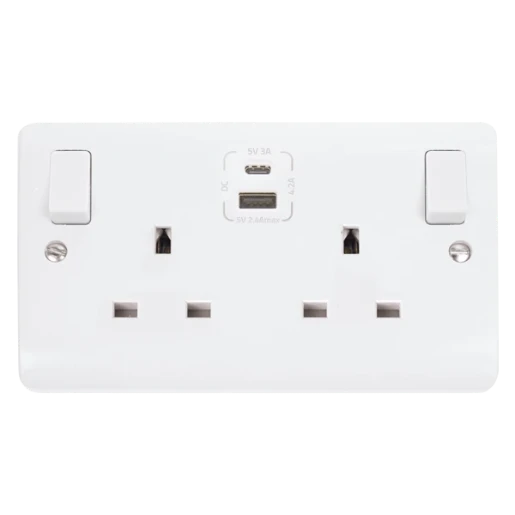

Polar White Mode 2 Gang 13A 1x USB-A 1x USB-C 4.2A Switched Socket
Part Number:
2501308808
MPN:
CMA786
- Product Type:
- White Moulded Square Edge
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Click Scolmore’s Mode range will fit easily into traditional and contemporary interiors alike. The entire range is manufactured using urea formaldehyde and so are anti microbial certified.The new Click Scolmore Mode USB sockets support both Type A and Type C charging. The Type A outlet offers up to 2.4A charging (when used on it’s own) and the Type C port allows up to 3A. When both ports are in use, the 4.2A charge is shared, with priority given to the Type C output to it’s full potential output of 3A. The Type A charge is then reduced to 1.2A.
- · Specification: 13A, 2 gang switched socket
- · Fitted with a Type A and Type C USB, shared output 4.2A
- · Minimum back box depth: 25mm
- · Fitted with safety shutters
Technical Specifications
Technical Specifications
Socket outlet | |
| Colour | White |
|---|---|
| Minimum depth of back box | 25 mm |
| Colour of rocker/switch operator | White |
| Depth of device | 31.8 mm |
| Height of device | 86 mm |
| Number of active contacts (rectangular) | 3 |
| Number of switchable socket outlets | 2 |
| Number of USB-C ports | 1 |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Number of USB-A ports | 1 |
| Width of device | 146 mm |
| Number of phases | 1 |
| Frequency | 50 - 50 Hz |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Antibacterial treatment | No |
| With function lighting | No |
| With orientation lighting | No |
|---|---|
| With loop through function | No |
| Metallic | No |
| For heavy conditions (in accordance with VDE) | No |
| IFTTT support available | No |
| Transparent | No |
| With miniature fuse | No |
| Rotated central insert | No |
| Fault current protection | No |
| Insulated mounting | No |
| Label space/information surface | No |
| Eject-mechanism | No |
| With enhanced contact protection | No |
| With indicator lamp | No |
| Over voltage-/surge protection | No |
| With on/off switch | Yes |
| With hinged lid | No |
| Lockable | No |
| Halogen free | No |
