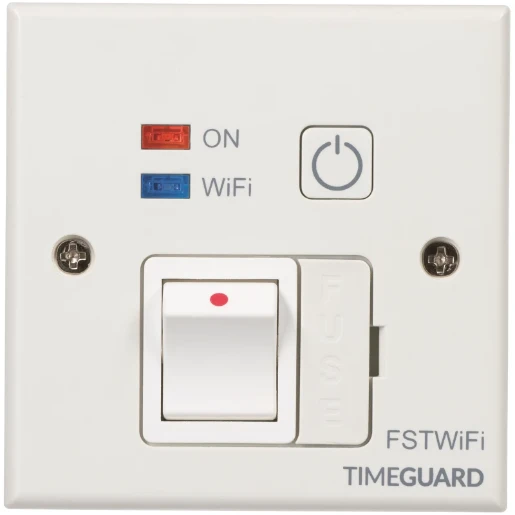

Connection Unit Internal Wifi Controlled Fused
Part Number:
2500979558
MPN:
FSTWIFI
- Product Type:
- White Moulded Square Edge
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Timeguard Fused Spur is Wi-Fi enabled control for all manner of electrical applications. Timeguard's FSTWiFi 13A Fused Spur Timeswitch is connected to the fused spur. It is ideal for switching lighting and electrical heaters. Programme settings are all activated via mobile device, giving access to control the installation at any time, no matter where users are. Total 3A 3kW control with confirmation of settings and switching status of the connected appliance via the on-screen app.
- · Energy saving control at your fingertips
- · Available for Android and IOS only
- · Works with Wi-Fi and 4G
- · Can reduce running costs if unwanted programmes are cancelled
- · Supports multiple devices
- · Auto mode, with permanent ON, permanent OFF and holiday modes
- · Optional 1 and 2 hour boost
- · Advance function
- · Supports additional programme sets, for half terms, holidays and seasonal programmes
- · 6 ON/OFF periods, with daily repeats positive ON/OFF status, with colour coded display automatic summer/winter changeover
Technical Specifications
Technical Specifications
Programmable time switch | |
| Nominal voltage | 230 V |
|---|---|
| Rated current | 13 A |
| Recess depth | - mm |
| RAL-number (similar) | - |
| Number of contacts as normally closed contact | - |
| Power reserve | - h |
| Max. power | 3000 W |
| Shortest switching interval | 1 min |
| Height of device | 85 mm |
| Number of contacts as normally open contact | - |
| Depth of device | 44 mm |
| Width of device | 85 mm |
| Minimum depth of back box | 25 mm |
| Number of module spaces (modular system) | - |
| Number of contacts as change-over contact | - |
|---|---|
| Twilight value adjustable | - - - lx |
| Frequency | 50 - 60 Hz |
| Time setting | - - - min |
| Auxiliary input | No |
| Random generator | No |
| Astro/solar program | No |
| IFTTT support available | No |
| With connection for light sensor | No |
| Transparent | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
