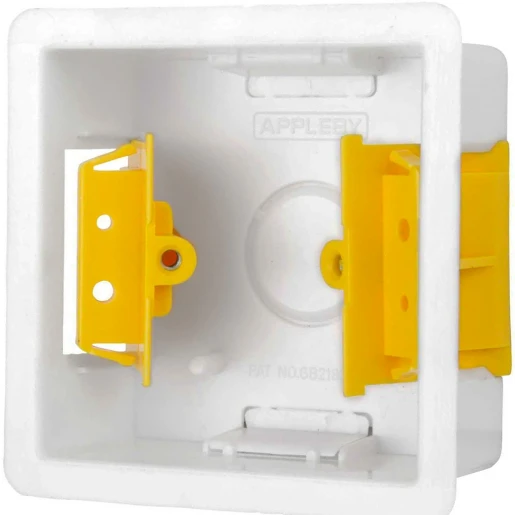

1 Gang Dry Lining Installation Box with Adjustable Lugs 35mm

Part Number:

2500003125

MPN:

SB619

To view pricing, availability, and special offering, click the button below and log in.

Product Details

A dry lining box fixes to a plasterboard wall or ceiling by sitting behind the plasterboard to give it a flush look.

· Made from flame retardant thermoplastic
· Tough yellow nylon lugs have large bearing faces for superior strength
· Large flange around the front matches profile of accessory front plates and prevents slipping into the cavity
· 25mm base knockout plus 2 side cable entry points.
· Appropriate for fitting board thicknesses from 6.35-15mm
· IP54

Current Product

Appleby

1 Gang Dry Lining Installation Box with Adjustable Lugs 35mm

Selected

Appleby

Earth Terminal Brass

Qty: 1

Selected

Appleby

2 Gang Dry Lining Installation Box with Adjustable Lugs 35mm

Qty: 1

Flush mounted box/housing
Width	83 mm
Length	83 mm
Number of entry points	1
For number of electric fittings	1
Number of included spouts	0
Internal depth	35 mm
Halogen free	Yes
Depth	36 - 36 mm
Airtight	No
Entry point on rear	Yes
Sealable	No
With screws	No


Luminaire hook mounting	No
With screening	No
Couplable	No
Transparent cover	No
Pipe locking	No
Clamp position fixed	No
Provided with revolving ring	No
Housing feed-through by seal membrane	No
Housing feed-through by step membrane	No
Housing feed-through by nozzle	No
Pipe locking optional	No
Housing feed-through by break-out opening	Yes
