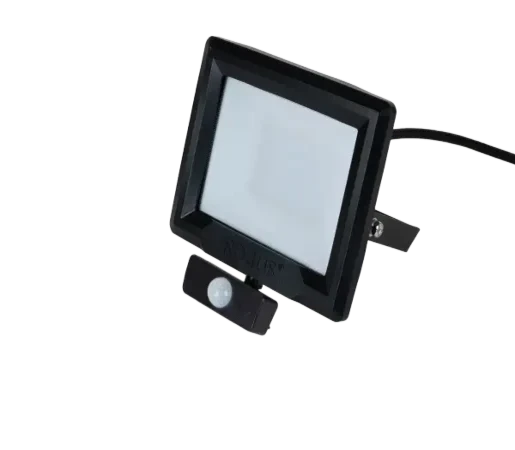

HILUME 30W LED Flood Light With PIR
Part Number:
2501276879
MPN:
RHL3040P-04
- Product Type:
- Residential Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
HILUME is an extensive range of floods from 10W to 100W this means that almost any small to medium size application can be catered for with the lumen packages in the range
- · A high quality powder coat process electrostatically applied to the die-cast aluminium body ensures that the fitting looks good and will continue to do so after being subjected to the rigours of the UK weather for years to come
- · A tempered glass frosted diffuser is used to provide an anti-vandal, low glare uniform light coverage of the area
- · A beam angle of 100 degrees ensures that good illumination of the area is achieved for vehicular or pedestrian access
- · PIR versions are available in all lumen packages except the 100W for additional energy savings which ensures lighting is only when required
- · A pre-drilled angled stirrup mounting bracket allows the position of mounting holes to be marked, drilled and the fitting fixed to the surface without removing the bracket from the fitting
- · The fitting is pre-wired to allow termination into a junction box which avoids the possibility of the IP rating being compromised during on-site connection
- · Total Power (W): 28
- · Lumens (lm): 2190
- · Beam Angle: 100
- · CRI: 80
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Housing colour | Black |
|---|---|
| Width | 144 mm |
| Outer diameter | - mm |
| Conductor cross section | - mm² |
| Height/depth | 82 mm |
| Degree of protection (IP), front side | IP65 |
| Number of poles | - |
| Unified Glare Rating (UGR) | 28.2 |
| Rated life time L70/B50 at 25 °C | 20000 h |
| Power factor | 0.99 |
| Length | 190 mm |
| Maximum system power | 28 W |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Connectable conductor cross section | - - - mm² |
| Number of lamps | - |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| Lamp power | - - - W |
| Dimming leading edge | No |
| Suitable for recessed mounting | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming DMX | No |
| Dimming manufacturer's proprietary system | No |
| Dimming 0-10 V | No |
| Dimming DSI | No |
| Dimming 1-10 V | No |
| Dimming potentiometer (integrated) | No |
|---|---|
| Control gear included | No |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for suspended mounting | No |
| Light source included | No |
| Suitable for ceiling mounting | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for light-track mounting | No |
| Suitable for traverse mounting | No |
| Suitable for clamp-mounting | No |
| Suitable for surface mounting | No |
| Suitable for pedestal/floor mounting | No |
| Brushed surface | No |
| With light sensor | No |
| With movement sensor | Yes |
| Dimming RF | No |
| Dimming trailing edge | No |
| Dimming Zigbee | No |
| Dimming DALI | No |
| Dimming programmable | No |
| Dimming mains voltage modulation | No |
| Dimming touch and dim | No |
| Dimming with push-button | No |
| Dimming sine wave reduction | No |
| Dimming LineSwitch | No |
| Suitable for low voltage cable system | No |
