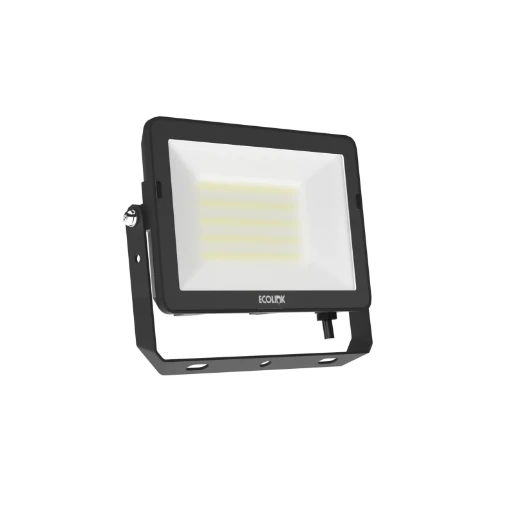

Ecolink IP65 Floodlight 50W 4000K
Part Number:
2501598904
MPN:
911401855085
- Product Type:
- Residential Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Outdoor LED floodlights suitable for a wide range of applications such as lighting façades, commercial or industrial areas, car parks, etc.
- · Energy efficiency
- · Reduces light pollution
- · Easy installation
- · Durability
- · Weatherproof
- · Saves money on energy bills
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Impact resistance (IK rating) | IK06 |
|---|---|
| Lamp cap/base | E10 |
| Housing colour | Black |
| Degree of protection (IP), front side | IP65 |
| Conductor cross section | 1 mm² |
| Housing material | Aluminium |
| Number of poles | 3 |
| Height/depth | 31 mm |
| Rated life time L70/B50 at 25 °C | 35000 h |
| Power factor | 0.9 |
| Max. number of luminaires per miniature circuit breaker C16 | 51 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Maximum system power | 50 W |
| Flickering value Pst LM | 1 |
| Lumen maintenance (35,000 h at 25 °C) | 65 % |
| Max. number of luminaires per miniature circuit breaker B16 | 44 |
| Length | 223 mm |
| Width | 183 mm |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Connectable conductor cross section | 1 - 1 mm² |
| Nominal current | 220 - 200 mA |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| Rated luminous flux according to IEC 62722-2- 1 | 4250 - 4250 lm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| With movement sensor | No |
| Control gear included | Yes |
| Suitable for traverse mounting | No |
| Suitable for clamp-mounting | No |
| Suitable for pedestal/floor mounting | Yes |
| Suitable for ceiling mounting | No |
| Suitable for recessed mounting | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for wall mounting | Yes |
|---|---|
| Compatible with Amazon Alexa | No |
| Light source included | Yes |
| Brushed surface | No |
| Suitable for surface mounting | Yes |
| Fit for workplace acc. EN 12464-1 | No |
| Constant luminous flux control | No |
| Bluetooth operated | No |
| Dimming DALI | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for light-track mounting | No |
| Suitable for low voltage cable system | No |
| IFTTT support available | No |
| Dimming programmable | No |
| Dimming touch and dim | No |
| Dimming 1-10 V | No |
| Dimming with push-button | No |
| Dimming potentiometer (integrated) | No |
| Compatible with Google Assistant | No |
| Dimming DMX | No |
| Dimming 0-10 V | No |
| Dimming mains voltage modulation | No |
| Dimming manufacturer's proprietary system | No |
| Replaceable control gear | No |
| Dimming Zigbee | No |
| Dimming RF | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Dimming DALI-2 | No |
| Dimming trailing edge | No |
| Dimming leading edge | No |
| Dimming LineSwitch | No |
| Dimming sine wave reduction | No |
