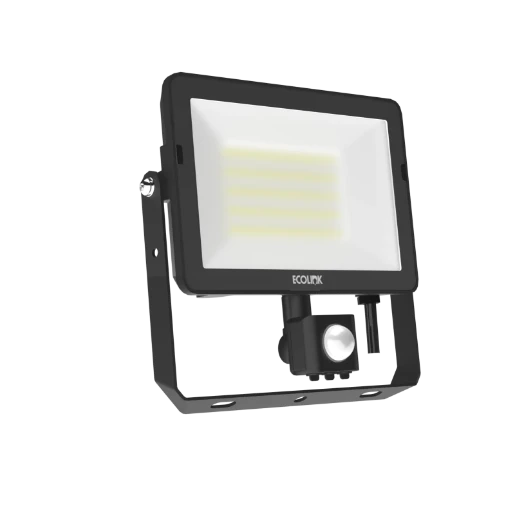

Ecolink IP65 Floodlight 50W 4000K With Sensor
Part Number:
2501598894
MPN:
911401855185
- Product Type:
- Residential Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Outdoor LED floodlights suitable for a wide range of applications such as lighting façades, commercial or industrial areas, car parks, etc.
- · Energy efficiency
- · Motion detection
- · Easy installation
- · Durability
- · Weatherproof
- · Saves money on energy bills
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Impact resistance (IK rating) | IK06 |
|---|---|
| Housing colour | Black |
| Lamp cap/base | E10 |
| Degree of protection (IP), front side | IP65 |
| Width | 210 mm |
| Housing material | Aluminium |
| Number of poles | 3 |
| Conductor cross section | 1 mm² |
| Height/depth | 57 mm |
| Rated life time L70/B50 at 25 °C | 35000 h |
| Power factor | 0.9 |
| Flickering value Pst LM | 1 |
| Lumen maintenance (35,000 h at 25 °C) | 65 % |
| Max. number of luminaires per miniature circuit breaker B16 | 44 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Max. number of luminaires per miniature circuit breaker C16 | 51 |
| Maximum system power | 50 W |
| Length | 223 mm |
| Colour temperature | 4000 - 4000 K |
| Nominal current | 220 - 220 mA |
| Nominal voltage | 220 - 240 V |
| Connectable conductor cross section | 1 - 1 mm² |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| Rated luminous flux according to IEC 62722-2- 1 | 4250 - 4250 lm |
| With movement sensor | Yes |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Suitable for wall mounting | Yes |
| Compatible with Google Assistant | No |
| Replaceable control gear | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Dimming leading edge | No |
| IFTTT support available | No |
| Dimming 0-10 V | No |
|---|---|
| Dimming 1-10 V | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming potentiometer (integrated) | No |
| Dimming with push-button | No |
| Compatible with Apple HomeKit | No |
| Constant luminous flux control | No |
| Suitable for surface mounting | Yes |
| Suitable for light-track mounting | No |
| Suitable for traverse mounting | No |
| Suitable for clamp-mounting | No |
| Dimming manufacturer's proprietary system | No |
| Suitable for recessed mounting | No |
| Suitable for pedestal/floor mounting | Yes |
| Fit for workplace acc. EN 12464-1 | No |
| Control gear included | Yes |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for ceiling mounting | No |
| Light source included | Yes |
| Brushed surface | No |
| Dimming RF | No |
| Dimming DALI-2 | No |
| Dimming Zigbee | No |
| Dimming trailing edge | No |
| Dimming programmable | No |
| Dimming mains voltage modulation | No |
| Dimming touch and dim | No |
| Dimming sine wave reduction | No |
| Suitable for low voltage cable system | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI | No |
| Bluetooth operated | No |
| Dimming LineSwitch | No |
