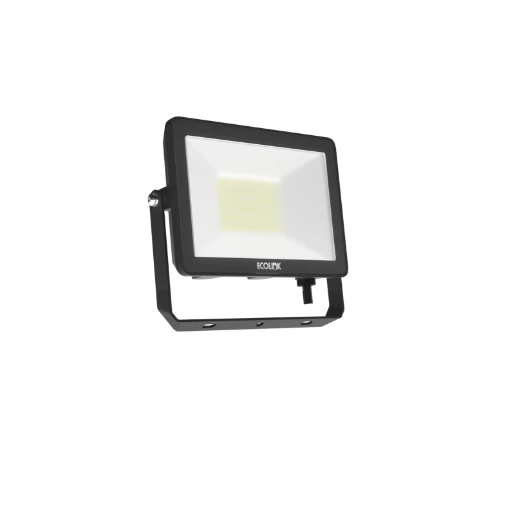

Ecolink IP65 Floodlight 30W 4000K
Part Number:
2501598906
MPN:
911401854885
- Product Type:
- Residential Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Outdoor LED floodlights suitable for a wide range of applications such as lighting façades, commercial or industrial areas, car parks, etc.
- · Energy efficiency
- · Reduces light pollution
- · Easy installation
- · Durability
- · Weatherproof
- · Saves money on energy bills
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Impact resistance (IK rating) | IK06 |
|---|---|
| Housing colour | Black |
| Lamp cap/base | E10 |
| Housing material | Aluminium |
| Length | 185 mm |
| Degree of protection (IP), front side | IP65 |
| Width | 161 mm |
| Conductor cross section | 1 mm² |
| Height/depth | 28 mm |
| Number of poles | 3 |
| Power factor | 0.9 |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Maximum system power | 30 W |
| Rated life time L70/B50 at 25 °C | 35000 h |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker B16 | 73 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Lumen maintenance (35,000 h at 25 °C) | 65 % |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Connectable conductor cross section | 1 - 1 mm² |
| Nominal current | 132 - 125 mA |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| Rated luminous flux according to IEC 62722-2- 1 | 2550 - 2550 lm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Suitable for wall mounting | Yes |
| Light source included | Yes |
| Fit for workplace acc. EN 12464-1 | No |
| Brushed surface | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for recessed mounting | No |
| With movement sensor | No |
| Constant luminous flux control | No |
| Suitable for ceiling mounting | No |
|---|---|
| Suitable for pedestal/floor mounting | Yes |
| Control gear included | Yes |
| Dimming DALI-2 | No |
| Suitable for surface mounting | Yes |
| Dimming RF | No |
| Dimming trailing edge | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for light-track mounting | No |
| Suitable for traverse mounting | No |
| Suitable for clamp-mounting | No |
| Compatible with Amazon Alexa | No |
| Dimming Zigbee | No |
| Dimming DALI | No |
| Bluetooth operated | No |
| Dimming LineSwitch | No |
| Suitable for low voltage cable system | No |
| Dimming mains voltage modulation | No |
| IFTTT support available | No |
| Dimming programmable | No |
| Dimming potentiometer (integrated) | No |
| Dimming touch and dim | No |
| Dimming with push-button | No |
| Compatible with Google Assistant | No |
| Replaceable control gear | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming sine wave reduction | No |
| Compatible with Apple HomeKit | No |
| Dimming leading edge | No |
| Dimming manufacturer's proprietary system | No |
| Dimming DMX | No |
| Dimming DSI | No |
