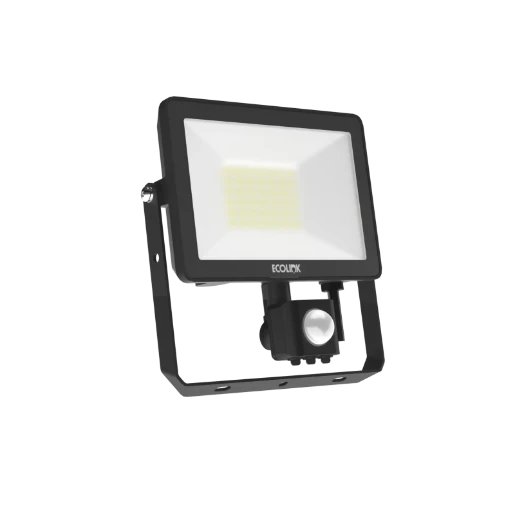

Ecolink IP65 Floodlight 30W 4000K With Sensor
Part Number:
2501598905
MPN:
911401854985
- Product Type:
- Residential Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Outdoor LED floodlights suitable for a wide range of applications such as lighting façades, commercial or industrial areas, car parks, etc.
- · Energy efficiency
- · Motion detection
- · Easy installation
- · Durability
- · Weatherproof
- · Saves money on energy bills
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Impact resistance (IK rating) | IK06 |
|---|---|
| Housing colour | Black |
| Lamp cap/base | E10 |
| Degree of protection (IP), front side | IP65 |
| Housing material | Aluminium |
| Height/depth | 56 mm |
| Conductor cross section | 1 mm² |
| Number of poles | 3 |
| Power factor | 0.9 |
| Rated life time L70/B50 at 25 °C | 35000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Maximum system power | 30 W |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker B16 | 73 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Lumen maintenance (35,000 h at 25 °C) | 65 % |
| Length | 185 mm |
| Width | 183 mm |
| Colour temperature | 4000 - 4000 K |
| Nominal current | 132 - 125 mA |
| Connectable conductor cross section | 1 - 1 mm² |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| Rated luminous flux according to IEC 62722-2- 1 | 2550 - 2550 lm |
| With movement sensor | Yes |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | Yes |
| Compatible with Google Assistant | No |
| Dimming programmable | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming touch and dim | No |
| Compatible with Amazon Alexa | No |
|---|---|
| Dimming trailing edge | No |
| Dimming DALI | No |
| Dimming 1-10 V | No |
| Dimming potentiometer (integrated) | No |
| Suitable for pedestal/floor mounting | Yes |
| IFTTT support available | No |
| Dimming with push-button | No |
| Suitable for recessed mounting | No |
| Dimming leading edge | No |
| Suitable for clamp-mounting | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming sine wave reduction | No |
| Constant luminous flux control | No |
| Suitable for light-track mounting | No |
| Brushed surface | No |
| Control gear included | Yes |
| Light source included | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for traverse mounting | No |
| Suitable for surface mounting | Yes |
| Dimming DALI-2 | No |
| Suitable for low voltage cable system | No |
| Dimming RF | No |
| Dimming Zigbee | No |
| Dimming 0-10 V | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Replaceable control gear | No |
| Dimming DMX | No |
| Dimming LineSwitch | No |
| Bluetooth operated | No |
