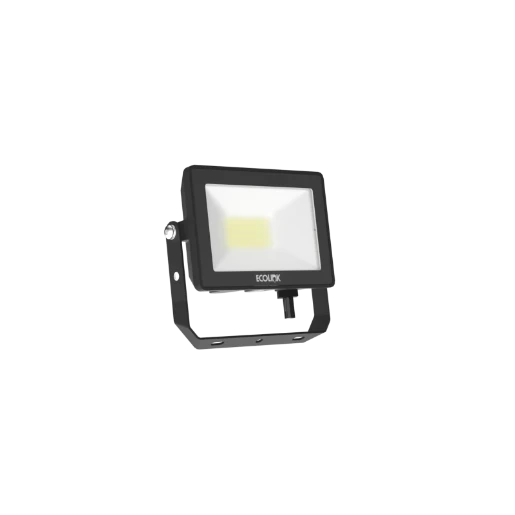

Ecolink IP65 Floodlight 20W 4000K
Part Number:
2501598890
MPN:
911401854685
- Product Type:
- Residential Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Outdoor LED floodlights suitable for a wide range of applications such as lighting façades, commercial or industrial areas, car parks, etc.
- · Energy efficiency
- · Reduces light pollution
- · Easy installation
- · Durability
- · Weatherproof
- · Saves money on energy bills
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Impact resistance (IK rating) | IK06 |
|---|---|
| Housing colour | Black |
| Lamp cap/base | E10 |
| Degree of protection (IP), front side | IP65 |
| Housing material | Aluminium |
| Width | 125 mm |
| Conductor cross section | 1 mm² |
| Length | 140 mm |
| Max. number of luminaires per miniature circuit breaker B16 | 109 |
| Max. number of luminaires per miniature circuit breaker C16 | 127 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Lumen maintenance (35,000 h at 25 °C) | 65 % |
| Height/depth | 29 mm |
| Number of poles | 3 |
| Flickering value Pst LM | 1 |
| Maximum system power | 20 W |
| Power factor | 0.9 |
| Rated life time L70/B50 at 25 °C | 35000 h |
| Colour temperature | 4000 - 4000 K |
| Nominal current | 90 - 82 mA |
| Connectable conductor cross section | 1 - 1 mm² |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| Rated luminous flux according to IEC 62722-2- 1 | 1700 - 1700 lm |
| Suitable for suspended mounting | No |
| With movement sensor | No |
| Control gear included | Yes |
| Suitable for pedestal/floor mounting | Yes |
| Suitable for ceiling mounting | No |
| With light sensor | No |
| Suitable for wall mounting | Yes |
| Compatible with Apple HomeKit | No |
| Replaceable control gear | No |
| Dimming 0-10 V | No |
| Dimming Zigbee | No |
|---|---|
| Dimming DSI | No |
| Dimming DMX | No |
| Suitable for recessed mounting | No |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for light-track mounting | No |
| Suitable for traverse mounting | No |
| Suitable for surface mounting | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Luminaire may be covered with thermally insulating material | No |
| Brushed surface | No |
| Constant luminous flux control | No |
| Light source included | Yes |
| Suitable for low voltage cable system | No |
| Dimming LineSwitch | No |
| Dimming trailing edge | No |
| Dimming DALI | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Dimming sine wave reduction | No |
| Dimming 1-10 V | No |
| Dimming potentiometer (integrated) | No |
| Bluetooth operated | No |
| IFTTT support available | No |
| Dimming manufacturer's proprietary system | No |
| Dimming with push-button | No |
| Dimming RF | No |
| Suitable for clamp-mounting | No |
| Compatible with Google Assistant | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming programmable | No |
| Dimming touch and dim | No |
