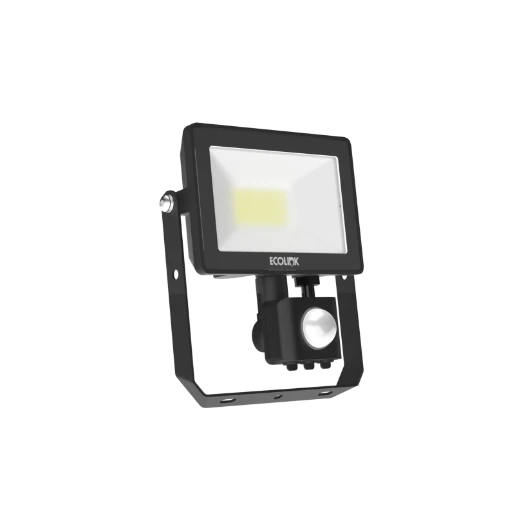

Ecolink IP65 Floodlight 20W 4000K With Sensor
Part Number:
2501598889
MPN:
911401854785
- Product Type:
- Residential Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Outdoor LED floodlights suitable for a wide range of applications such as lighting façades, commercial or industrial areas, car parks, etc.
- · Energy efficiency
- · Motion detection
- · Easy installation
- · Durability
- · Weatherproof
- · Saves money on energy bills
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Impact resistance (IK rating) | IK06 |
|---|---|
| Housing colour | Black |
| Lamp cap/base | E10 |
| Degree of protection (IP), front side | IP65 |
| Width | 153 mm |
| Housing material | Aluminium |
| Conductor cross section | 1 mm² |
| Length | 140 mm |
| Height/depth | 54 mm |
| Number of poles | 3 |
| Max. number of luminaires per miniature circuit breaker B16 | 109 |
| Power factor | 0.9 |
| Rated life time L70/B50 at 25 °C | 35000 h |
| Maximum system power | 20 W |
| Flickering value Pst LM | 1 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Max. number of luminaires per miniature circuit breaker C16 | 127 |
| Lumen maintenance (35,000 h at 25 °C) | 65 % |
| Colour temperature | 4000 - 4000 K |
| Connectable conductor cross section | 1 - 1 mm² |
| Nominal voltage | 220 - 240 V |
| Nominal current | 90 - 82 mA |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| Rated luminous flux according to IEC 62722-2- 1 | 1700 - 1700 lm |
| With movement sensor | Yes |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Suitable for wall mounting | Yes |
| Constant luminous flux control | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Brushed surface | No |
| Suitable for recessed mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Suitable for traverse mounting | No |
|---|---|
| Suitable for pedestal/floor mounting | Yes |
| Light source included | Yes |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for surface mounting | Yes |
| Suitable for ceiling mounting | No |
| Dimming DSI | No |
| Dimming 0-10 V | No |
| Dimming sine wave reduction | No |
| Dimming DMX | No |
| Dimming manufacturer's proprietary system | No |
| Compatible with Amazon Alexa | No |
| Replaceable control gear | No |
| Dimming Zigbee | No |
| Dimming DALI-2 | No |
| Suitable for low voltage cable system | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming touch and dim | No |
| Compatible with Apple HomeKit | No |
| Dimming RF | No |
| Dimming LineSwitch | No |
| Dimming trailing edge | No |
| Dimming leading edge | No |
| Compatible with Google Assistant | No |
| Dimming mains voltage modulation | No |
| Dimming with push-button | No |
| Dimming potentiometer (integrated) | No |
| Control gear included | Yes |
| Dimming 1-10 V | No |
| IFTTT support available | No |
| Bluetooth operated | No |
| Dimming programmable | No |
| Dimming DALI | No |
