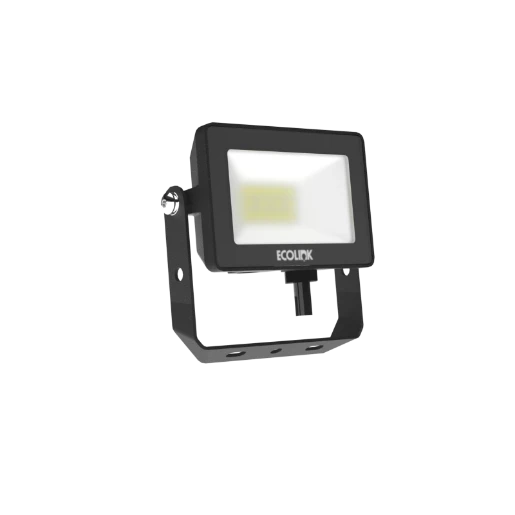

Ecolink IP65 Floodlight 10W 4000K
Part Number:
2501598892
MPN:
911401854485
- Product Type:
- Residential Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Outdoor LED floodlights suitable for a wide range of applications such as lighting façades, commercial or industrial areas, car parks, etc.
- · Energy efficiency
- · Reduces light pollution
- · Easy installation
- · Durability
- · Weatherproof
- · Saves money on energy bills
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Impact resistance (IK rating) | IK06 |
|---|---|
| Housing colour | Black |
| Lamp cap/base | E10 |
| Degree of protection (IP), front side | IP65 |
| Length | 107 mm |
| Housing material | Aluminium |
| Width | 102 mm |
| Conductor cross section | 1 mm² |
| Max. number of luminaires per miniature circuit breaker B16 | 218 |
| Flickering value Pst LM | 1 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Lumen maintenance (35,000 h at 25 °C) | 65 % |
| Number of poles | 3 |
| Height/depth | 28 mm |
| Power factor | 0.9 |
| Max. number of luminaires per miniature circuit breaker C16 | 255 |
| Maximum system power | 10 W |
| Rated life time L70/B50 at 25 °C | 35000 h |
| Colour temperature | 4000 - 4000 K |
| Nominal current | 45 - 41 mA |
| Nominal voltage | 220 - 240 V |
| Connectable conductor cross section | 1 - 1 mm² |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| Rated luminous flux according to IEC 62722-2- 1 | 850 - 850 lm |
| With light sensor | No |
| With movement sensor | No |
| Dimming LineSwitch | No |
| Dimming DALI-2 | No |
| Suitable for low voltage cable system | No |
| Dimming trailing edge | No |
| IFTTT support available | No |
| Dimming DALI | No |
| Dimming with push-button | No |
| Dimming potentiometer (integrated) | No |
| Bluetooth operated | No |
|---|---|
| Compatible with Amazon Alexa | No |
| Dimming RF | No |
| Dimming Zigbee | No |
| Dimming programmable | No |
| Dimming touch and dim | No |
| Compatible with Apple HomeKit | No |
| Replaceable control gear | No |
| Dimming DSI | No |
| Dimming manufacturer's proprietary system | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming sine wave reduction | No |
| Compatible with Google Assistant | No |
| Dimming 0-10 V | No |
| Dimming DMX | No |
| Dimming mains voltage modulation | No |
| Dimming 1-10 V | No |
| Suitable for surface mounting | Yes |
| Fit for workplace acc. EN 12464-1 | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Dimming leading edge | No |
| Suitable for recessed mounting | No |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | Yes |
| Constant luminous flux control | No |
| Control gear included | Yes |
| Light source included | Yes |
| Suitable for suspended mounting | No |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | No |
| Brushed surface | No |
