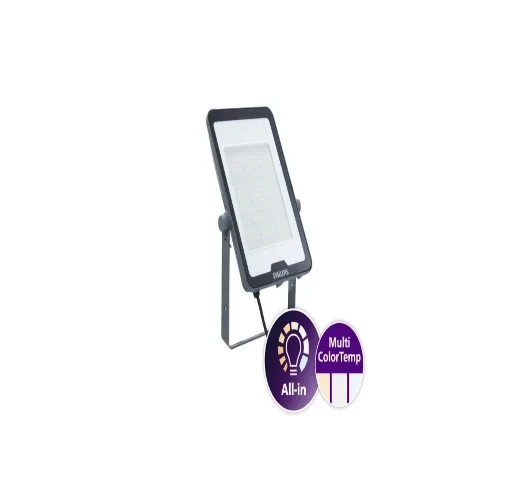

BVP169 LEDINAIRE IP65 FLOODLIGHT 135W MULTI_CCT ASYMMETRIC
Part Number:
2503000100
MPN:
911401885386
- Product Type:
- Residential Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Philips ledinaire BVP169 Floodlight range comes with the Philips high quality levels at a competitive price. Featuring switchable CCT technology, these floodlights can provide warm white, cool white or daylight light colours. Available with optional photocell light sensor to avoid energy wastage. Avaible with Symmetrical and Asymmetrical llight distribution. Reliable, energy-efficient and affordable and adaptable – just what you need.
- · 135w
- · 15700 lumens

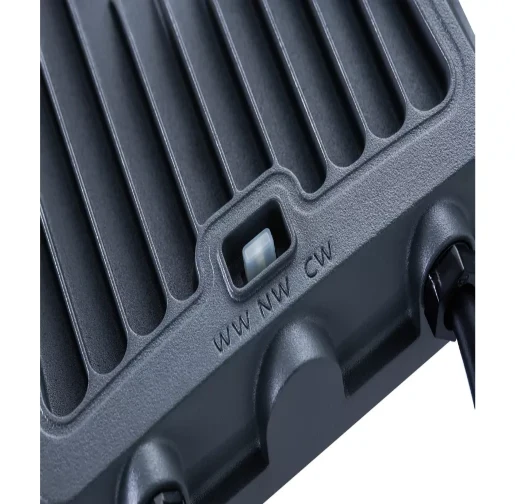

- · 3000K/ 4000K/ 6500K Seleectable
- · IP65 Fitting
- · 5 year warranty
- · Aysmmetrical Beam
- · 116 lm/w
- · Luminous Flux: 15,000 15,750 lm
- · Standard tilt angle post-top: 27°
- · Luminous efficacy (rated) (nom.) 110: 115 lm/W
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Conductor cross section | 1 mm² |
|---|---|
| Number of poles | 3 |
| Height/depth | 37 mm |
| Width | 282 mm |
| Number of lamps | 1 |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 80 % |
| Max. number of luminaires per miniature circuit breaker B16 | 14 |
| Rated life time L70/B50 at 25 °C | 80000 h |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Power factor | 0.95 |
| Maximum system power | 135 W |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 17 |
| Length | 401 mm |
| Lamp power | 135 - 135 W |
| Nominal voltage | 220 - 240 V |
| Connectable conductor cross section | 1 - 1 mm² |
| Colour temperature | 3000 - 6500 K |
| Nominal current | 0.58 - 0.58 mA |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| With light sensor | No |
| With movement sensor | No |
| Suitable for suspended mounting | No |
| Suitable for wall mounting | Yes |
| Replaceable control gear | No |
| Dimming 0-10 V | No |
| Dimming DALI | No |
| Dimming DSI | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming RF | No |
| Dimming DALI-2 | No |
| Compatible with Apple HomeKit | No |
|---|---|
| Dimming trailing edge | No |
| Suitable for surface mounting | Yes |
| Suitable for light-track mounting | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | No |
| Bluetooth operated | No |
| Dimming LineSwitch | No |
| Control gear included | Yes |
| Suitable for ceiling mounting | No |
| Suitable for pedestal/floor mounting | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for traverse mounting | No |
| Suitable for clamp-mounting | No |
| Suitable for recessed mounting | No |
| Compatible with Amazon Alexa | No |
| Brushed surface | No |
| Constant luminous flux control | No |
| Light source included | Yes |
| Dimming potentiometer (integrated) | No |
| IFTTT support available | No |
| Dimming DMX | No |
| Dimming leading edge | No |
| Dimming programmable | No |
| Dimming manufacturer's proprietary system | No |
| Compatible with Google Assistant | No |
| Dimming mains voltage modulation | No |
| Dimming touch and dim | No |
| Dimming 1-10 V | No |
| Dimming sine wave reduction | No |
| Suitable for low voltage cable system | No |
