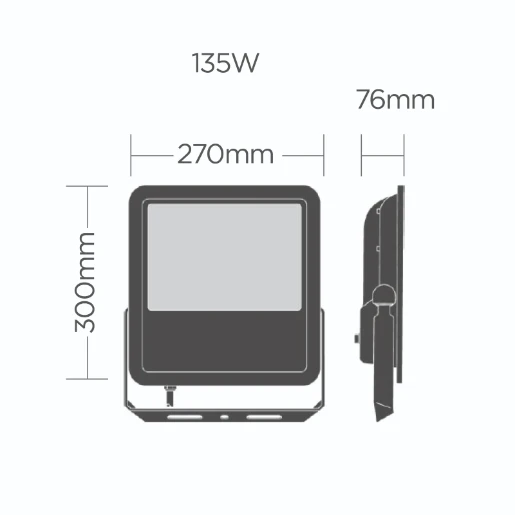

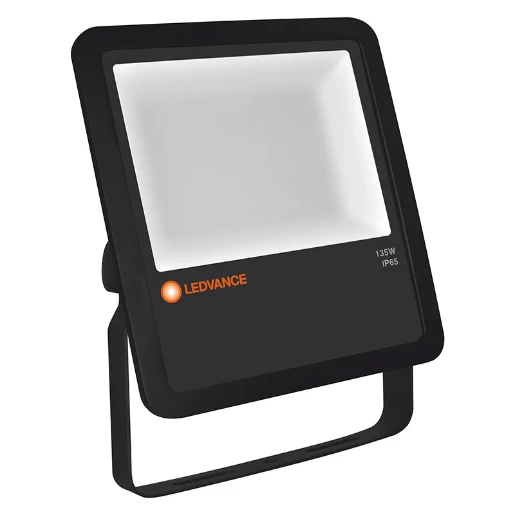

Floodlight LED 125W 4000K IP65 15000lm Black
Part Number:
2501157632
MPN:
4058075423701
- Product Type:
- Commercial & Industrial Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A floodlight that is ideal for both commercial and industrial applications offering significant energy savings over discharge light fittings. With a similar size and shape to traditional commercial floodlights
- · These are ideal for retrofit applications
- · Replacement for floodlights with halogen lamps and HQI lamps
- · Replacement for 1000W HAL/250W HQI
- · Connection-ready product with 1m cable and prepared cable ends
- · Aluminium housing and body
- · Glass diffuser
- · Mounting bracket for 180 tilt
- · Features a beam angle of 100
Frequently Bought Together
Current Product
Ledvance
Floodlight LED 125W 4000K IP65 15000lm Black
Error while fetching price from ERP!
Ledvance
Floodlight LED 125W 4000K IP65 15000lm Black Photocell
Error while fetching price from ERP!
Qty: 1
Newlec
Junction Box 5 Pole 2.5mm² Terminals 85 x 88 x 47mm² IP65 Black
Error while fetching price from ERP!
Qty: 1Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Width | 290 mm |
|---|---|
| Length | 1000 mm |
| Conductor cross section | - mm² |
| Height/depth | - mm |
| Outer diameter | - mm |
| Number of poles | 3 |
| Flickering value Pst LM | - |
| Number of lamps | 0 |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | - |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Stroboscope effect value SVM | - |
| Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) | - % |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Power factor | 0.9 |
| Maximum system power | 125 W |
| Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Lamp power | - W |
| Nominal voltage | - - 277 V |
| Colour temperature | 4000 - 4000 K |
| Connectable conductor cross section | - mm² |
| Rated ambient temperature acc. IEC62722-2-1 | -80 - -80 °C |
| Cut-out diameter | - mm |
| Suitable for suspended mounting | No |
| With light sensor | No |
| With movement sensor | No |
| IFTTT support available | Yes |
| Light source included | Yes |
| Suitable for ceiling mounting | No |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | Yes |
| Suitable for light-track mounting | No |
|---|---|
| Suitable for clamp-mounting | No |
| Brushed surface | No |
| Suitable for wall mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for recessed mounting | No |
| Constant luminous flux control | No |
| Control gear included | Yes |
| Replaceable control gear | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI-2 | No |
| Dimming DALI | No |
| Dimming mains voltage modulation | No |
| Dimming trailing edge | No |
| Dimming programmable | No |
| Dimming leading edge | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming RF | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming sine wave reduction | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for low voltage cable system | No |
