Floodlight LED 125W 4000K IP65 15000lm Black Photocell
Part Number:
2501157633
MPN:
4058075216785
- Product Type:
- Commercial & Industrial Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A floodlight that is ideal for both commercial and industrial applications offering significant energy savings over discharge light fittings. With a similar size and shape to traditional commercial floodlights
- · These are ideal for retrofit applications
- · Replacement for floodlights with halogen lamps and HQI lamps
- · Replacement for 1000W HAL/250W HQI
- · Connection-ready product with 1m cable and prepared cable ends
- · Aluminium housing and body
- · Glass diffuser
- · Mounting bracket for 180 tilt
- · Features a beam angle of 100
- · Photocell option to turn fitting off
Frequently Bought Together
Current Product
Ledvance
Floodlight LED 125W 4000K IP65 15000lm Black Photocell
Error while fetching price from ERP!
Ledvance
Floodlight LED 125W 4000K IP65 15000lm Black
Error while fetching price from ERP!
Qty: 1
Newlec
Junction Box 5 Pole 2.5mm² Terminals 85 x 88 x 47mm² IP65 Black
Error while fetching price from ERP!
Qty: 1Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Degree of protection (IP), front side | IP65 |
|---|---|
| Number of lamps | - |
| Maximum system power | 135 W |
| Rated life time L70/B50 at 25 °C | - h |
| Conductor cross section | - mm² |
| Power factor | 0.9 |

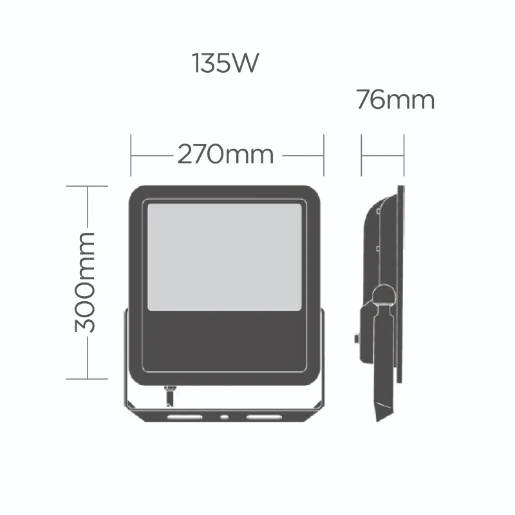

| Height/depth | 76 mm |
| Number of poles | 2 |
| Width | 270 mm |
| Length | 300 mm |
| Colour temperature | 4000 - 4000 K |
| Lamp power | - W |
| Connectable conductor cross section | - mm² |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 50 °C |
| Rated luminous flux according to IEC 62722-2- 1 | 15000 - 15000 lm |
| With movement sensor | No |
| With light sensor | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for suspended mounting | No |
| Suitable for low voltage cable system | No |
| Dimming leading edge | No |
| Dimming 1-10 V | No |
| Dimming potentiometer (integrated) | No |
| Dimming sine wave reduction | No |
| Dimming manufacturer's proprietary system | No |
|---|---|
| Dimming Zigbee | No |
| Dimming 0-10 V | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming trailing edge | No |
| Dimming LineSwitch | No |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for pedestal/floor mounting | No |
| Dimming mains voltage modulation | No |
| Dimming DALI | No |
| Dimming programmable | No |
| Dimming with push-button | No |
| Dimming RF | No |
| Dimming touch and dim | No |
| Control gear included | Yes |
| Brushed surface | No |
| Suitable for ceiling mounting | No |
| Suitable for surface mounting | Yes |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for recessed mounting | No |
| Suitable for light-track mounting | No |
| Suitable for traverse mounting | No |
| Suitable for clamp-mounting | No |
| Light source included | Yes |
