Studio 18W LED downlight, White, CCT selectable 3000K, 4000K
Part Number:
2501267659
MPN:
RSD18CCT3M-01
- Product Type:
- Surface-Mounted Commercial Downlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details

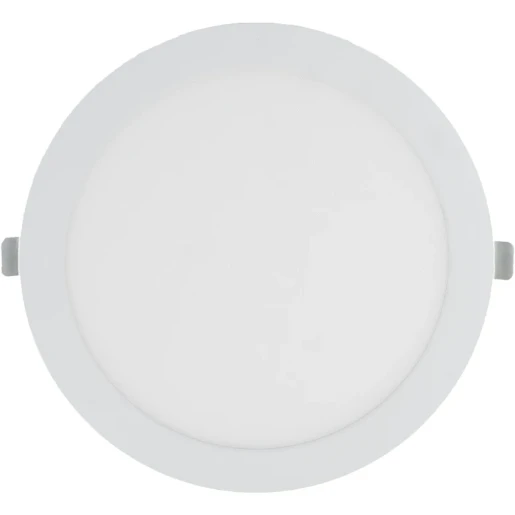

Studio 18W LED downlight, White, CCT selectable 3000K, 4000K
- · Suitable for use in offices, healthcare centres, hospitals, shops, hotels, restaurants, schools and universities
- · The fitting can be either recessed or surface mounted
- · Adjustable stainless steel mounting bracket allowing mounting in cut outs of 55-175mm
- · LED replacement for 2x18W PL fluorescent downlights
- · CCT selectable between 3000K, 4000K and 6500K using switch on on the back of the fitting
- · Polycarbonate housing with polystyrene diffuser
- · Comes with magnet to allow easy clip-on mounting of accessory trims
- · Prewired with 170mm flex
- · High efficacy of 87-95lm/W
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing material | Plastic |
|---|---|
| Housing colour | White |
| Power factor | 0.9 |
| Maximum system power | 18.6 W |
| Rated life time L70/B50 at 25 °C | 20000 h |
| Height/depth | 15 mm |
| Outer diameter | 217 mm |
| Unified Glare Rating (UGR) | 27.2 |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 3000 - 6500 K |
| Nominal current | 90 - 90 mA |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| With movement sensor | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Light source included | Yes |
| Suitable for light line configuration | No |
| With air slots | No |
| Suitable for recessed mounting | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for ceiling mounting | No |
| Dimming DALI | No |
|---|---|
| Dimming touch and dim | No |
| Fit for workplace acc. EN 12464-1 | No |
| Control gear included | Yes |
| Suitable for emergency lighting | No |
| Suitable for surface mounting | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming manufacturer's proprietary system | No |
| Dimming 0-10 V | No |
| Dimming Zigbee | No |
| Dimming DMX | No |
| Bluetooth operated | No |
| Dimming RF | No |
| Dimming DSI | No |
| Dimming trailing edge | Yes |
| Dimming potentiometer (integrated) | No |
| Dimming programmable | No |
| Dimming mains voltage modulation | No |
| Dimming 1-10 V | No |
| Dimming with push-button | No |
| Dimming leading edge | Yes |
