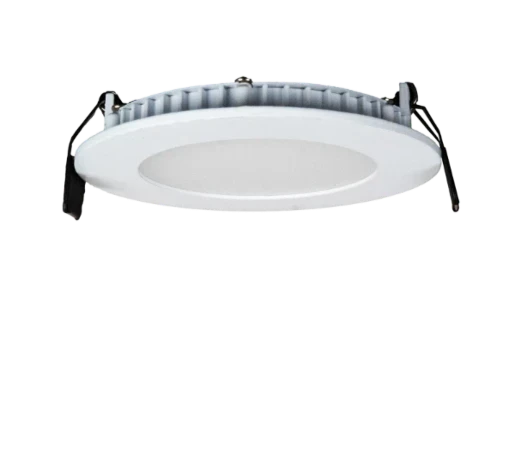

Ip20 300Mm White 4000K Sun 24W Led Circular Panel
Part Number:
2501306718
MPN:
R300LEDC40N-01
- Product Type:
- Recessed Commercial Downlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
This is a 24W circular LED panel light. It is part of the Sun LED range and is suitable for use in offices, restaurants, hospitals and reception areas.
- · Suitable for use in offices, healthcare centres and hospitals, shops, hotels, restaurants, schools and universities
- · LED replacement for 2x26W PL downlights
- · Die cast aluminium body with polycarbonate diffuser
- · High impact rating of IK08
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing colour | White |
|---|---|
| Outer diameter | 300 mm |
| Power factor | 0.95 |
| Unified Glare Rating (UGR) | 20.7 |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Recess height/depth | 22.5 mm |
| Maximum system power | 23.6 W |
| Recess diameter | 285 mm |
| Height/depth | 25 mm |
| Conductor cross section | - mm² |
| Number of poles | - |
| Lamp power | - - - W |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Nominal current | 110 - 110 mA |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| Dimming DMX | No |
| Dimming manufacturer's proprietary system | No |
| Dimming leading edge | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming touch and dim | No |
| Dimming DALI | No |
| Dimming Zigbee | No |
| Dimming DSI | No |
|---|---|
| Dimming 0-10 V | No |
| Dimming trailing edge | No |
| Dimming RF | No |
| Control gear included | Yes |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Suitable for surface mounting | No |
| With air slots | No |
| Dimming with push-button | No |
| Dimming 1-10 V | No |
| Dimming potentiometer (integrated) | No |
| Dimming mains voltage modulation | No |
| Dimming programmable | No |
| Light source included | Yes |
| Suitable for recessed mounting | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | No |
| With light sensor | No |
| Suitable for ceiling mounting | No |
| With movement sensor | No |
| Suitable for suspended mounting | No |
