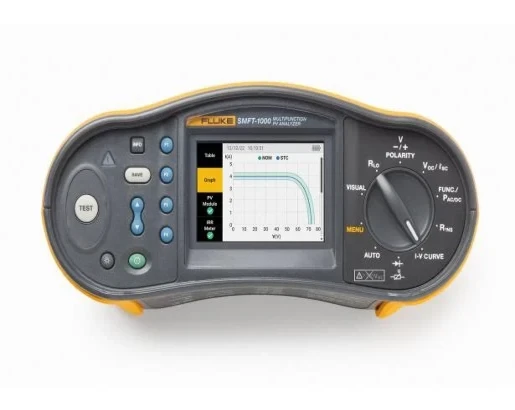

SMFT-1000 Multifunction PV Tester and Performance Analyzer I-V Curve Tracer

Test that PV systems are performing to their optimal power output as well as operating safely with the Fluke SMFT-1000 multifunction tester with I-V curve tracing.  Designed for PV professionals that provide installation, commissioning and maintenance services to systems that operate at 1000 V DC or under, the SMFT-1000 provides a complete PV testing solution that conforms to IEC 62446-1 standards. Through Fluke’s TruTest™ Software, measurement data from solar site installation and commissioning testing can be easily imported, organized and analyzed for effortless reporting without having to bring a laptop on-site.To perform precise I-V curve measurements, real time irradiance and temperature data is needed. The included IRR2-BT irradiance meter wirelessly connects to the SMFT-1000 to communicate data in real time, providing the most accurate I-V curve measurements possible. If the wireless connection is interrupted for any reason, the IRR2-BT will continue recording data for up to 17 hours that can later be matched to tests taken with the SMFT-1000.It’s a hassle to change the configuration of test leads constantly while doing different tests. With Fluke’s “Keep the Leads” system, less time is wasted on set-up, and less user errors occur while testing PV systems. Now you can get more testing done in the field in less time.While taking an I-V curve reading in the field, the SMFT-1000 will display the curve as it loads in the test data, against the module specifications as defined by the manufacturer. This makes it easy to immediately confirm measurements without the use of a laptop or tablet. Run the I-V curve test on new installations to confirm they are working according to the site specifications, or to test if existing modules or strings are working to their expected performance levels.

• · All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
• · Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC
• · Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC
• · On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen
• · Compatible with Fluke TruTest data management software
• · Protective resistance earth RLO
• · Voltage on open circuit, including polarity VOC
• · Irradiance, temperature, tilt, cardinal direction
