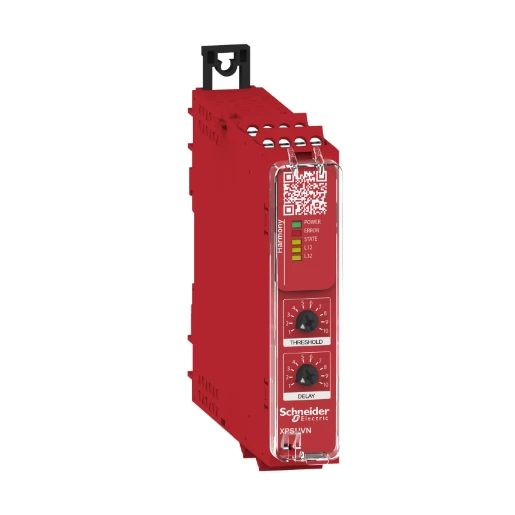

Safety module, Harmony Safety Automation, Zero speed monitoring with time delay, 24V AC/DC, screw
Part Number:
2501537476
MPN:
XPSUVN11AP
- Product Type:
- Circuit Breakers & Devices
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Manual
Manual
Manual
Product Details
Product Details
XPSUVN is a safety module for interruption of safety-related electrical circuits. XPSUVN provides for sensorless standstill monitoring of a motor, and measures the residual voltage that is generated by remanent magnetization after power to the motor is removed and while it coasts down. The voltage is measured via an analog voltage measuring input to determine when standstill has actually been reached.
- · Start input Automatic
- · Safety inputs 3
- · Control outputs ˗
- · Safety outputs 1 NO (configurable) 0,5...60 s
- · Diagnostic outputs 2
- · Connection type Removable terminal blocks
- · Safe expansion connection Yes
- · Terminals 16
- · Module width 22.5 mm/0.886 in.
- · Time delay setting 0.5 s, 1 s, 2 s, 3 s, 5 s, 8 s, 12 s, 20 s, 35 s, 60 s
Technical Specifications
Technical Specifications
Speed-/standstill monitoring relay | |
| Performance level acc. to EN ISO 13849-1 | Level e |
|---|---|
| SIL according to IEC 61508 | 3 |
| Evaluation inputs | 2-channel |
| Voltage type for actuating | AC/DC |
| Width | 22.5 mm |
| Type of electric connection | Screw connection |
| Height | 100 mm |
| Depth | 120 mm |
| Number of outputs, signalling function, undelayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, semiconductors | 2 |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, safety related, delayed, with contact | 1 |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, safety related, undelayed, semiconductors | 0 |
|---|---|
| Number of outputs, safety related, undelayed, with contact | 1 |
| Rated control supply voltage at AC 60 Hz | 24 - 24 V |
| Rated control supply voltage at AC 50 Hz | 24 - 24 V |
| Rated control supply voltage at DC | 24 - 24 V |
| Suitable for safety functions | Yes |
| With feedback circuit | No |
| With approval according to UL | Yes |
| With detachable clamps | Yes |
| With approval for TÜV | Yes |
| With approval for BG BIA | Yes |
| Function rotational speed monitoring | No |
| Function standstill monitoring | Yes |
