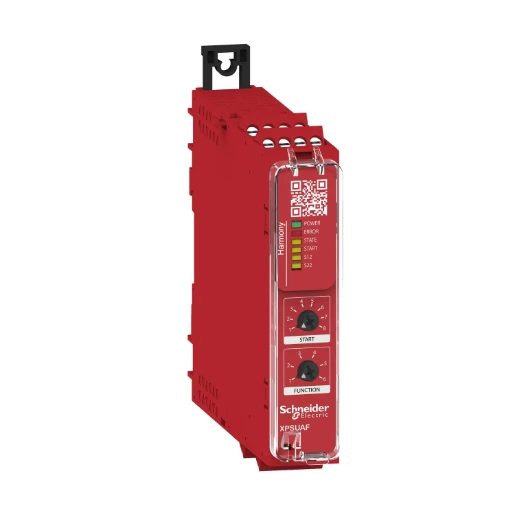

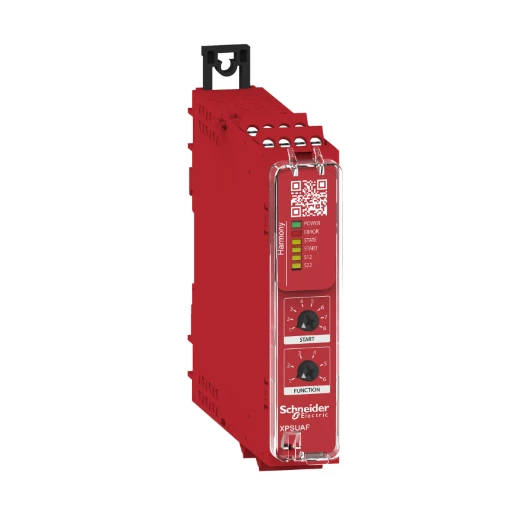

Safety Module Uaf Cat.4 24V Screw
Part Number:
2501297434
MPN:
XPSUAF13AP
- Product Type:
- Circuit Breakers & Devices
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Manual
Technical Data Sheet
Product Details
Product Details
SAFETY MODULE UAF CAT.4 24V SCRE
- · Start inputs Automatic, manual & monitored start
- · Safety inputs 2
- · Control outputs 3 ON/OFF configurable pulsed outputs
- · Safety outputs 3 NO
- · Diagnostic outputs 1 solid state diagnostic output with complete status information
- · Connection type Removable terminal blocks
- · Safe expansion connection Yes
- · Terminals 16
- · Module width 22.5 mm/0.886 in.
- · Maximum achievable safety level
Technical Specifications
Technical Specifications
Device for monitoring of safety-related circuits | |
| Height | 100.00 mm |
|---|---|
| Depth | 120.00 mm |
| Width | 22.50 mm |
| Number of outputs, signalling function, delayed, with contact | 0.00 |
| Number of outputs, signalling function, undelayed, semiconductors | 0.00 |
| Number of outputs, safety related, undelayed, with contact | 3.00 |
| Number of outputs, signalling function, delayed, semiconductors | 0.00 |
| Number of outputs, safety related, undelayed, semiconductors | 0.00 |
| Number of outputs, safety related, delayed, with contact | 0.00 |
| Number of outputs, safety related, delayed, semiconductors | 0.00 |
| Number of outputs, signalling function, undelayed, with contact | 0.00 |
| Release-delay | 0.00 - 0.00 s |
| With approval according to UL | Yes |
| Rail mounting possible | Yes |
|---|---|
| With approval for BG BIA | No |
| With muting function | No |
| Suitable for monitoring of magnetic switches | Yes |
| Suitable for monitoring of proximity switches | Yes |
| Suitable for monitoring of emergency-stop circuits | Yes |
| Suitable for monitoring of optoelectronic protection equipment | Yes |
| Suitable for monitoring of position switches | Yes |
| Suitable for monitoring of tactile sensors | No |
| Suitable for monitoring of valves | No |
| With feedback circuit | Yes |
| With start input | Yes |
| With detachable clamps | Yes |
