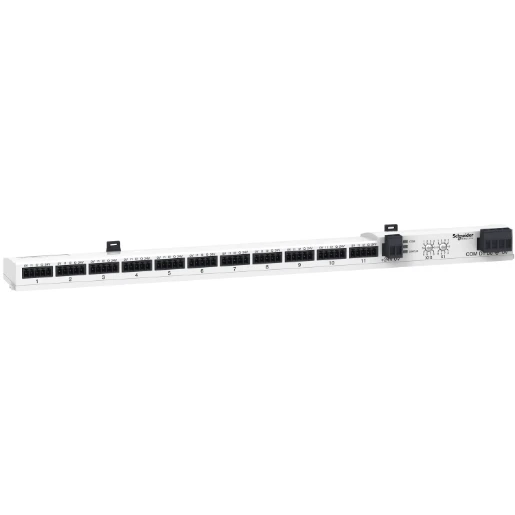

Acti9 Smartlink - Modbus RS485 slave - smart communication I/O module
Part Number:
2500685447
MPN:
A9XMSB11
- Product Type:
- Circuit Breakers & Devices
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Manual
Technical Data Sheet
Product Details
Product Details
This Acti 9 SmartLink Modbus Slave is a smart communication module with 11 channels. It communicates with the auxiliaries iACT24 for iCT contactors, iATL24 for iTL impulse relays, iOF+SD24 for iC60, iID, ARA, RCA & iSW-NA. It needs to be associated to a Master SmartLink SI B thanks to the Modbus RS485 connector. It is used to transfer data from Acti 9 devices to a PLC or network monitoring system thanks to the Ethernet connector. It communicates also with OF+SD24 for C60, C120, DPN, ID & C60H-DC, Ti24 for RCA iC60 & Reflex iC60. It is supplied with 1 power supply connector 24VDC, 2 bolts for mounting on Linergy FM80. The link is Modbus, RTU, RS485 serial connection. The transfer rate is self-adaptable from 9600 to 19200 baud. The Modbus addresing range is 1 to 99. It is a 4-pin connector type of bus. It is a plug-in connection. The maximum length of the bus is 1000m. The maximum cable length is 500m. The voltage power supply is 24VDC +/- 10%. The Maximum input current is 1,5A. The Maximum inrush current is 3A. The degree of protection is IP20. The pollution degree is 3. It complies with RoHS directive. The duration of saving memory is 10 years. The dimensions are (W) 359mm x (H) 23mm x (D) 42mm. The weigth is 195g. The operating temperature is -25°C to + 60°C and only +50°C if vertical mouting. The storage temperature is -40°C to + 80°C. This product complies with IEC/EN 61131-2 standard.
- · Acti 9 smartlink communication module/modbus
- · Allows up to 11 wired devices
- · 1 group of 11 channels
- · BMS controller compatible
- · Reset button on front face
- · LED local signalling
Technical Specifications
Technical Specifications
Fieldbus, decentr. periphery - analogue/digital I/O module | |
| Width | 359 mm |
|---|---|
| Depth | 42 mm |
| Height | 23 mm |
| Number of HW-interfaces USB | 0 |
| Resolution of the analogue outputs | - Bit |
| Resolution of the analogue inputs | - Bit |
| Output current at digital output | 0.1 A |
| Number of HW-interfaces Wireless | 0 |
| Number of HW-interfaces PROFINET | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Input current at signal 1 | 2.5 mA |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of digital outputs | 11 |
| Number of digital inputs | 22 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces parallel | 0 |
| Time delay at signal change | - - - ms |
| Output voltage at digital output | 24 - 24 V |
| Supply voltage AC 50 Hz | - - - V |
| Supply voltage AC 60 Hz | - - - V |
| Permitted voltage at input | 19.2 - 28.8 V |
| Supply voltage DC | 24 - 24 V |
| Analogue inputs configurable | Yes |
| Analogue outputs configurable | No |
| Digital outputs configurable | Yes |
| Fieldbus connection over separate bus coupler possible | No |
| Wall mounting/direct mounting | Yes |
| Front built-in possible | No |
| Appendant operation agent (Ex ia) | No |
| Rack-assembly possible | No |
| Rail mounting possible | No |
| System accessory | Yes |
| Analogue output signal configurable | No |
| Digital inputs configurable | Yes |
| Appendant operation agent (Ex ib) | No |
| Radio standard GPRS | No |
|---|---|
| Analogue output, voltage | No |
| Analogue output, current | No |
| Analogue input signal configurable | No |
| Analogue input, thermocouple | No |
| Analogue input, resistor temperature | No |
| Analogue input, resistor | No |
| Analogue input, voltage | No |
| Analogue input, current | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| IO link master | No |
| Short-circuit protection, digital outputs available | Yes |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for MODBUS | Yes |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for LON | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for ASI | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| With optical interface | No |
| Suitable for safety functions | No |
