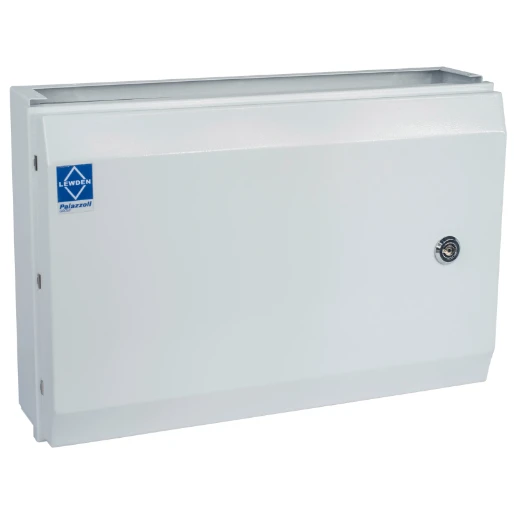

19 Module Extension Box
Part Number:
2501103415
MPN:
TPN-EXT19
- Product Type:
- Switchgear & Distribution
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Our new range of extension boxes allow engineers to customise their design to meet the requirements of larger distribution networks with an ingress protection rating of IP2XC. Designed to simply bolt on to the top and bottom of Lewden TPN boards, they provide greater cabling space and can be used multiple extension boxes can be utilised at the end to accommodate meters, time clocks, contactors, terminals etc. Can be used to accommodate meters, time clocks, contractors, terminals etc. Multiple extension boxes can be utilised.
- · Designed for compatibility with TP&N board.
- · Customizable design to meet installers requirements.
- · Can be used to accommodate meters, time clocks & more.
Technical Specifications
Technical Specifications
Small distribution board | |
| Width | 458 mm |
|---|---|
| Height | 303 mm |
| Recess depth | - mm |
| Internal depth | - mm |
| Number of rows | - |
| Depth | 117 mm |
| RAL number | - |
| Recess width | - mm |
| Recess height | - mm |
| Width in number of modular spacings | - |
| With lock | No |
|---|---|
| Extension possible | No |
| EMC-version | No |
| With mounting plate | No |
| Transparent cover/door | No |
| With DIN-rail | No |
| Earthing terminal block | No |
| Neutral terminal block | No |
| Signal passing door | No |
