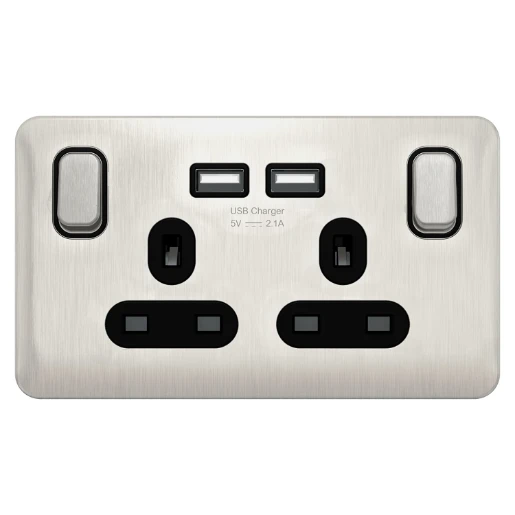

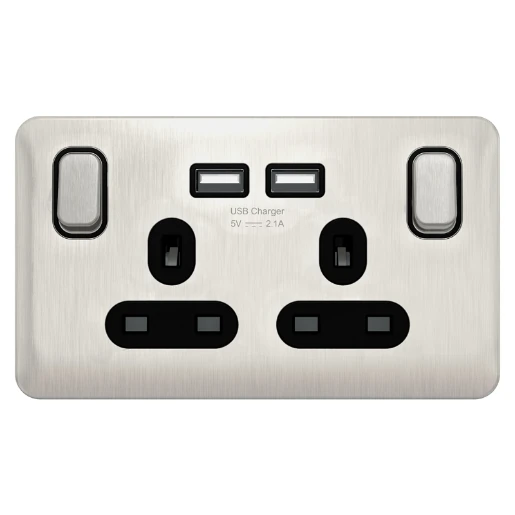

Socket 2 Gang Single Pole Switched 2 x 2.1A USB 13A Stainless Steel Black (Display Pk)
Part Number:
2501017203
MPN:
GGBL30202USBABSSS
- Product Type:
- Decorative Raised Edge
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Lisse range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability and value you can count on.
- · Double switched socket 13A
- · Future proofed to cater for latest demands in technology
- · 7mm raised edge plate with rounded profile
- · Ideally suited for new construction and refurbishment projects requiring a smooth modern plate profile.
- · Removable screwless cover with a reliable clip-in system.
- · Gently rounded metal rocker to compliment the curved profile
- · Light grey back moulding for easier terminal identification
- · Cable markings to check wire length
- · Requires a 25mm back box
Technical Specifications
Technical Specifications
Socket outlet | |
| Surface finish | Matt |
|---|---|
| Material | Metal |
| Material qualifier | Stainless steel |
| Nominal voltage | 250 V |
| Colour of rocker/switch operator | Stainless steel |
| Colour | Stainless steel |
| Number of USB-A ports | 2 |
| Minimum depth of back box | - mm |
| Width of device | 148 mm |
| Height of device | 87 mm |
| Number of module spaces (modular system) | 0 |
| Depth of device | 31 mm |
| Number of switchable socket outlets | 2 |
| Number of active contacts (rectangular) | 3 |
| Number of active contacts (round) | 0 |
| Nominal current | 13 A |
| Frequency | 50 - 60 Hz |
| Halogen free | No |
| Transparent | No |
|---|---|
| With indicator lamp | No |
| With on/off switch | Yes |
| Fault current protection | No |
| Rotated central insert | No |
| Over voltage-/surge protection | No |
| Eject-mechanism | No |
| With enhanced contact protection | Yes |
| Insulated mounting | No |
| Antibacterial treatment | No |
| With miniature fuse | No |
| With loop through function | No |
| With function lighting | No |
| With orientation lighting | No |
| Label space/information surface | No |
| Lockable | No |
| With hinged lid | No |
