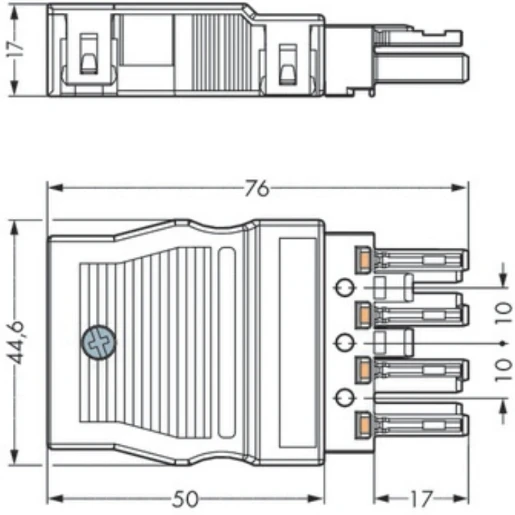

Plug-in connector for plug-in building installation | |
| Model | Bus |
|---|---|
| Type of locking | None |
| Colour coding/contact insert | White |
| Housing material | Polyamide (PA) |
| Degree of protection (IP rating) | IP20 |
| Connection type | Spring clamp connection |
| Width | 218 mm |
| Pole codification | L, N, PE |
| Number of poles | 3 |
| Height | 15 mm |
| Rated current | 25 A |
| Rated voltage | 250 V |
| Length | 76 mm |
| Number of connections per pole | 2 |
|---|---|
| Pollution degree | 3 |
| Continuity resistance | 3 mOhm |
| Rated surge voltage | 4 kV |
| Max. continuous temperature resistance contact part | 85 °C |
| Max. continuous temperature resistance strain relief | 85 °C |
| Connection cross section (solid-core) | 0.5 - 4 mm² |
| Connection cross section (fine-strand) | 5.4 - 4 mm² |
| Cable diameter | 8 - 11.5 mm |
| With strain relief | Yes |
| Halogen free | No |
| Mechanical coding | Yes |
