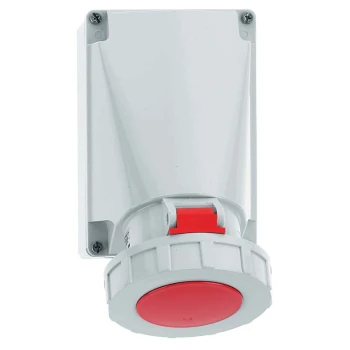

Surface Mounting Socket 63A 400V 5 Pole IP67
Part Number:
2500039749
MPN:
1112
- Product Type:
- Wall Mount Sockets IP67
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
63A 400V 5 Pole IP67 6H with screw terminals,M40 Top Entry and M32 Bottom Entry.Enclosure made of polycarbonate,The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated.With a maximum conductor size of 25.0 mm,The cable entry is one at top open and two at bottom closed.Lower part of housing is rotatable by 180°,High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket.
- · Amp Current 63A
- · Voltage 400V
- · Pins 3P+N+E
- · IP Rating IP67
Technical Specifications
Technical Specifications
Socket outlet | |
| Degree of protection (IP rating) | IP67 |
|---|---|
| Mounting method | Surface mounted |
| Colour | Red |
|---|---|
