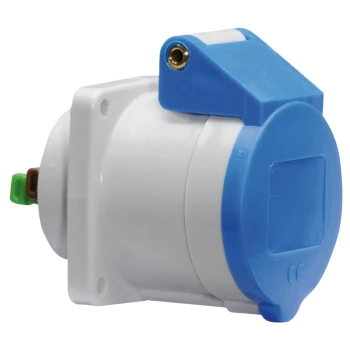

Panel Mounting Socket 16A 230V 3 Pole IP44
Part Number:
2500111674
MPN:
13668
- Product Type:
- Wall Mount Sockets IP44
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
16A 230V 3 Pole IP44 6H with quick connect screwless terminals Panel Mounting Socket Outlets Straight.Enclosure made of polyamide,The contact carrier is made of polyamide, the contacts are made of brass with a maximum conductor size of 4,0 mm.Flange size of 62x62 with fixing centers 47x47.
- · All QUICK-CONNECT sockets are touch-safe
- · Pressing the contact slide with your finger closes the terminal
- · Reliable and permanent connection by means of spring-clamp technology
- · The damage-free conductor clamping guarantees an optimum connection over the entire service life
Technical Specifications
Technical Specifications
Panel-mounted CEE socket outlet | |
| Degree of protection (IP rating) | IP44 |
|---|---|
| Material | Plastic |
| Angle of plug | Straight |
| Identification colour | Blue |
| Voltage acc. EN 60309-2 | 230 V (50+60 Hz) blue |
| Connection system | Screwed terminal |
| Surface finish contacts | Untreated |
| Contact material | CuZn |
| Number of poles | 3 |
| RAL number | 5015 |
| Clock hour position | 6 h |
|---|---|
| IEC-amperage | 16 A |
| Amperage acc. UL/CSA (for UL-version) | - A |
| Drill hole distance vertical | 47 mm |
| Drill hole distance horizontal | 47 mm |
| Flange size vertical | 62 mm |
| Flange size horizontal | 62 mm |
| Rated frequency | - Hz |
| Rated voltage | - V |
| Military model | No |
