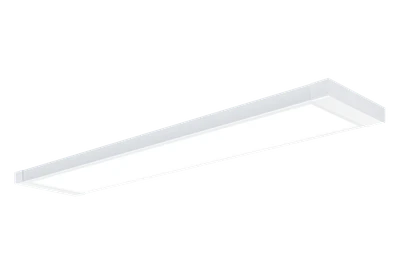

LED Surface mounted Roxy 1200mm IP20 32W 4000lm 4000K
Part Number:
2501539911
MPN:
96634867
- Product Type:
- Surface Linears
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Surface mounted LED luminaire for direct illumination with UGR<19. Gentle, soft and glare-free lighting for office and education applications with opal diffuser made of PS for fully homogenous illumination. Luminaire input power: 32 W. Lifetime: 50.000h L80, Chromaticity tolerance (initial MacAdam): 4. Total luminous flux: 4000 lm, Luminaire efficacy: 125 lm/W, Colour rendering Ra > 80, colour temperature 4000 K. Tool-free installation (piano key terminal for up to 2.5 mm² wires). Flicker free. Suitable for surface and suspension mounting. Sensor, emergency light conversion, continuous row connector and suspension kit available as accessory. Input power adjustable on site by 4 step (FLEX1: 4000lm (32W), FLEX2: 3800 lm (30W), FLEX3: 3600 lm (28W), FLEX4: 3400 lm (26W)). For flex data on other colour temperatures please visit website. Dimensions: 1200 x 306 x 47 mm, weight: 3.5 kg.
- · Rated luminous flux (IEC 62722-2-1): 4004
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Impact resistance (IK rating) | IK03 |
| Colour rendering index (CRI/Ra) | 80-89 |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Cover material | Plastic opal |
| Protection class according to IEC 61140 | I |
| Lumen setting adjustable | Discrete positions |
| Housing colour | White |
| Colour of light | White |
| Filament test according to IEC 60695-2-11 | 650 C - 30 s |
| Control gear | LED driver constant current |
| Photobiological safety according to EN 62471 | RG0 |
| Light distribution | Asymmetric |
| Colour temperature switchable | No |
| Degree of protection (IP), front side | IP20 |
| Light outlet | Direct |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Housing material | Aluminium |
| Width | 306 mm |
| Power factor | 0.92 |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Maximum system power | 32 W |
| Recess height/depth | - mm |
| Recess length | - mm |
| Number of lamps | 1 |
| Height/depth | 47 mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | 37 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | 85 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 80 % |
| Max. number of luminaires per miniature circuit breaker C16 | 53 |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | 19 |
| Number of poles | - |
| Recess diameter | - mm |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Outer diameter | - mm |
| Length | 1200 mm |
|---|---|
| Lamp power | - W |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Nominal current | - - - mA |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| Dimming DALI-2 | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
| Bluetooth operated | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Light source included | Yes |
| With movement sensor | No |
| Suitable for surface mounting | Yes |
| With light sensor | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for light line configuration | No |
| Control gear included | Yes |
| Suitable for emergency lighting | No |
| Suitable for recessed mounting | No |
| Constant luminous flux control | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming potentiometer (integrated) | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | Yes |
| Dimming DMX | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming programmable | No |
| Dimming RF | No |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | Yes |
