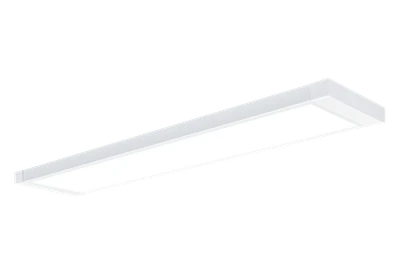

LED Pendant Roxy 1200mm IP20 45W 5500lm 4000K
Part Number:
2501539919
MPN:
96634871
- Product Type:
- Surface Linears
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Suspended LED luminaire for direct and indirect illumination with UGR<19. Gentle, soft and glare-free lighting for office and education applications with opal diffuser made of PS for fully homogenous illumination. Luminaire input power: 45 W Lifetime: 50.000h L80, Chromaticity tolerance (initial MacAdam): 4. Total luminous flux: 5500 lm. Luminaire efficacy: 122 lm/W. Colour rendering Ra > 80, colour temperature 4000 K Direct/indirect ratio: 70:30. Tool-free installation (piano key terminal for up to 2.5 mm² wires). Flicker free. Sensor, emergency light conversion, continuous row connector available as accessory. Input power adjustable on site by 4 step (FLEX1: 5500 lm (45W), FLEX2: 5225 lm (43W), FLEX3: 4950 lm (41W), FLEX4: 4675 lm (38W)). For flex data on other colour temperatures please visit website. Suspension kit included. Dimensions: 1200 x 306 x 47 mm, weight: 3.5 kg.
- · Rated luminous flux (IEC 62722-2-1): 5489
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Impact resistance (IK rating) | IK03 |
| Colour rendering index (CRI/Ra) | 80-89 |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Protection class according to IEC 61140 | I |
| Cover material | Plastic opal |
| Housing colour | White |
| Lumen setting adjustable | Discrete positions |
| Filament test according to IEC 60695-2-11 | 650 C - 30 s |
| Colour of light | White |
| Control gear | LED driver constant current |
| Light distribution | Asymmetric |
| Light outlet | Direct/indirect |
| Photobiological safety according to EN 62471 | RG0 |
| Colour temperature switchable | No |
| Degree of protection (IP), front side | IP20 |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Housing material | Aluminium |
| Width | 306 mm |
| Power factor | 0.92 |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Maximum system power | 45 W |
| Recess height/depth | - mm |
| Height/depth | 47 mm |
| Recess length | - mm |
| Number of lamps | 1 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | 25 |
| Lumen maintenance (35,000 h at 25 °C) | 85 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 80 % |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | 17 |
| Flickering value Pst LM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Number of poles | - |
| Recess diameter | - mm |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Outer diameter | - mm |
| Length | 1200 mm |
|---|---|
| Lamp power | - W |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Nominal current | - - - mA |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| Suitable for suspended mounting | Yes |
| With movement sensor | No |
| Light source included | Yes |
| Constant luminous flux control | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for light line configuration | No |
| Control gear included | Yes |
| Suitable for surface mounting | No |
| Suitable for ceiling mounting | No |
| With light sensor | No |
| Suitable for emergency lighting | No |
| Suitable for recessed mounting | No |
| IFTTT support available | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
| Dimming DALI-2 | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Luminaire may be covered with thermally insulating material | No |
| With air slots | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Fit for workplace acc. EN 12464-1 | Yes |
| Dimming programmable | No |
| Dimming RF | No |
