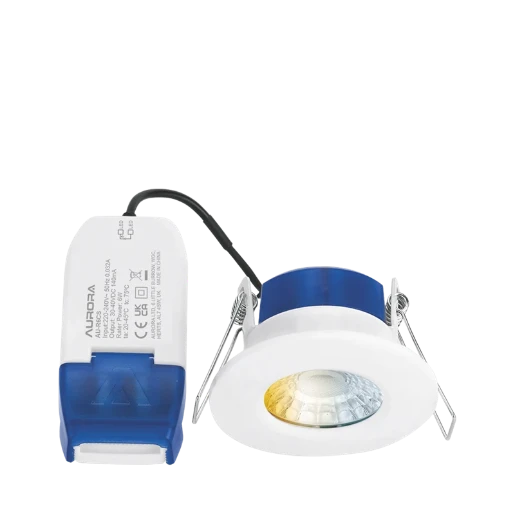

R6CS White Fixed 6W Colour Switchable Fire Rated Downlight
Part Number:
2501423684
MPN:
AU-R6CS
- Product Type:
- Integrated Residential Downlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Within the new RSeries Aurora have introduced a new colour switchable fire rated downlight, the R6CS. The downlight comes with a an AMP connector applied to a remote detachable driver with a loop in/loop out terminal block and at a height of 50mm, it is ideal for shallow ceiling voids. The colour switch can be located on the back of the fitting. Out of the box, the product comes complete with a polycarbonate white bezel (polished chrome, satin nickel and matt black bezels sold separately).
- · Colour temperature can be switched between 3000K, 4000K and 5700K
- · Lumen output ranges from 540lm at 3000K, 640lm at 4000K and 580lm at 5700K
- · Low profile design for shallow ceiling voids (50mm)
- · Supplied with detachable remote driver
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Housing colour | White |
|---|---|
| Degree of protection (IP), front side | IP65 |
| Light source type | LED non-replaceable |
| Maximum system power | 6 W |
| Colour temperature | 3000 - 5700 K |
|---|---|
| Cut-out diameter | 65 - 70 mm |
| Suitable for recessed mounting | Yes |
