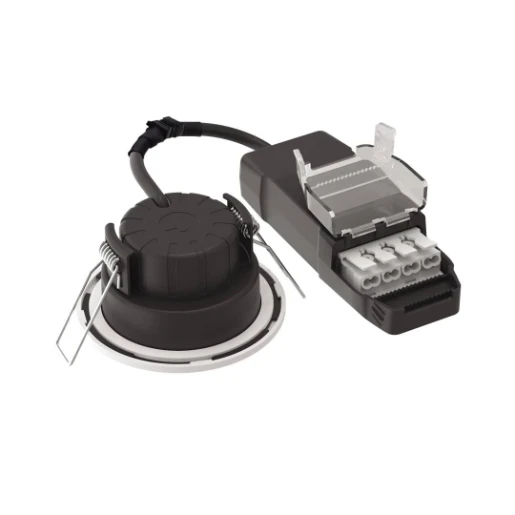

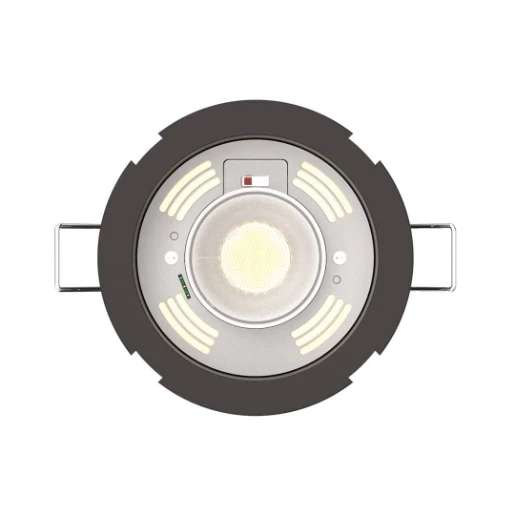

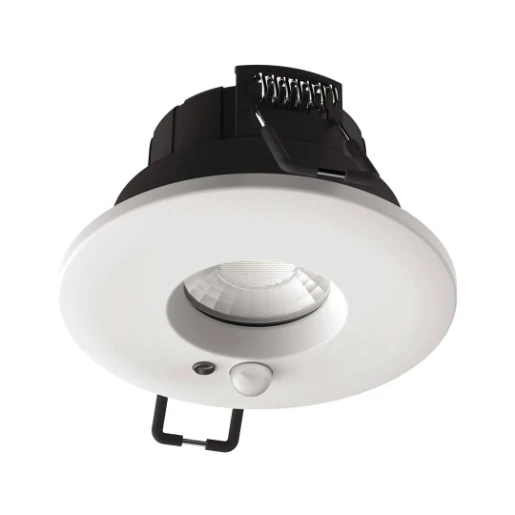

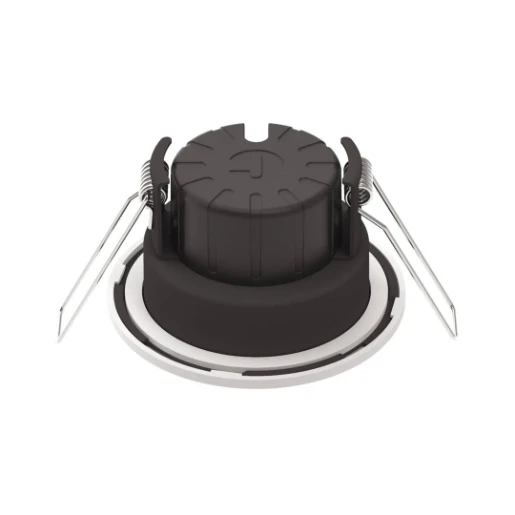

H2 Sense Csp Housing And Driver Ip65 Non-Dim
Part Number:
2501624628
MPN:
DLSENSE
- Product Type:
- Integrated Residential Downlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
H2 Sense downlight combines smart functionality with superior performance. Switch between warm, natural, and cool white light to set the mood. The built-in PIR sensor turns off the light when you leave (adjustable hold time), and the lux level adjustment ensures that it remains off in natural daylight, saving energy. Adjust the sensor sensitivity (10cm to 2m) and connect additional lights (up to 200W total) for greater control. The H2 Sense provides a total package, with high efficacy (up to 113lm/W) and fire-rated safety. While bezels are sold separately, you can personalise the appearance to fit your space. It is ideal for homes, offices, and other settings where you want intelligent and efficient lighting.
- · Colour switchable between 2700K, 3000K and 4000K
- · PIR light for switching lights OFF that keep getting left ON
- · High efficacy up to 113lm/W
- · Hold time - adjust from 30secs up to 15 minutes
- · Sensitivity - Adjust from close range of 10cm up to 2 metres away
- · Lux Level - Adjust to keep the light OFF when there is enough natural daylight
- · Switched live out to other lights up to 200W (max 30 H2 Sense)
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Width | 88 mm |
|---|---|
| Length | 130 mm |
| Maximum system power | 6 W |
| Unified Glare Rating (UGR) | 28 |
| Power factor | 85 |
| Rated life time L70/B50 at 25 °C | 44000 h |
| Number of lamps | 1 |
| Colour temperature | 2700 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Height/depth | 43 mm |
| Compatible with Amazon Alexa | No |
| Rated ambient temperature acc. IEC62722-2-1 | 10 °C |
| Dimming DALI | No |
| Dimming touch and dim | No |
| Dimming LineSwitch | No |
| Light source included | Yes |
| With movement sensor | No |
| With light sensor | No |
|---|---|
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming DMX | No |
| Dimming 0-10 V | No |
| Dimming leading edge | No |
| Dimming manufacturer's proprietary system | No |
| Dimming DALI-2 | No |
| Dimming trailing edge | No |
| Dimming RF | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| IFTTT support available | No |
| Dimming programmable | No |
| Dimming mains voltage modulation | No |
| Dimming 1-10 V | No |
| Dimming sine wave reduction | No |
