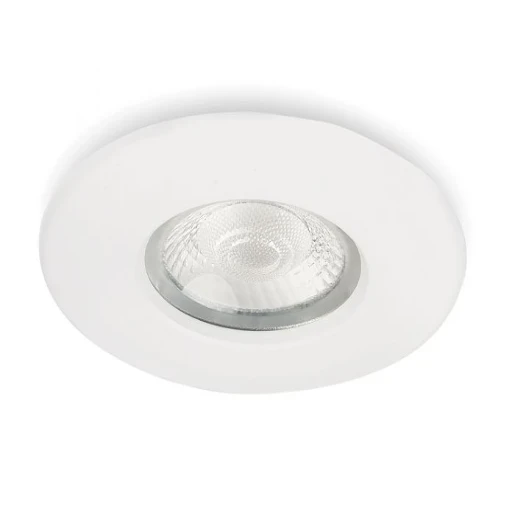

5-7W 2700K/3000/4000K Fixed Fire Rated Downlight Colour And Lumen Switchable
Part Number:
2501375882
MPN:
DLE5245500
- Product Type:
- Integrated Residential Downlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The H2 Pro downlight is one of a kind. The lumen output and the colour temperature can be changed via switches on the driver. This flexibility is valuable and offers peace of mind that you have a downlight that is capable of fulfilling the requirements of the majority of installations. The H2 Pro has a 7 year extended warranty, along with 70,000 hours of LED lifetime, it is a fit and forget solution.
- · High efficacy of up to 130lm/W
- · IP65 front/ IP20 rear
- · Fire rated and I-Joist approved
- · Supplied with two part, push fit connector
- · Compatible with twist and lock bezels
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Width | 90 mm |
|---|---|
| Number of lamps | 1 |
| Height/depth | 50 mm |
| Maximum system power | 7 W |
| Length | 195 mm |
| Unified Glare Rating (UGR) | 28 |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 2700 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | 20 °C |
| With light sensor | No |
| With movement sensor | No |
| Light source included | Yes |
| Suitable for wall mounting | No |
| Suitable for suspended mounting | No |
| Suitable for recessed mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | No |
| Dimming mains voltage modulation | No |
| Dimming LineSwitch | No |
|---|---|
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming programmable | No |
| Dimming DALI | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| IFTTT support available | No |
| Dimming trailing edge | No |
| Dimming leading edge | No |
| Dimming RF | No |
| Dimming touch and dim | No |
| Dimming DALI-2 | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Dimming potentiometer (integrated) | No |
| Dimming sine wave reduction | No |
| Dimming manufacturer's proprietary system | No |
