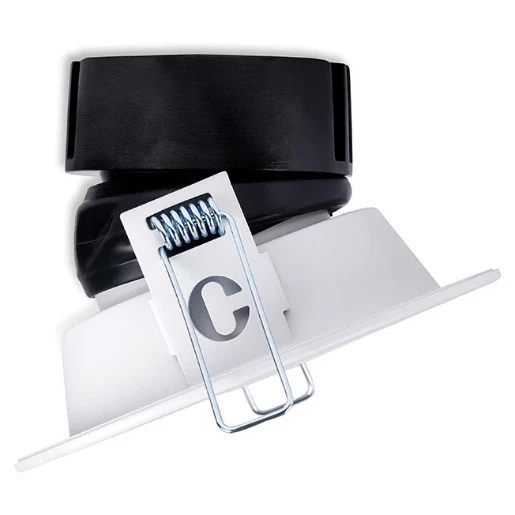

H5 1000 MW Mains Standard
Part Number:
2501355617
MPN:
DL510MWM
- Product Type:
- Residential Downlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
The renewed and refreshed H5 1,000 range has all the very latest features, benefits and LED technology. It is colour switchable, via a switch on the top of the fitting, with 2700K, 3000K and 4000K available to be selected before or during installation. It is adjustable up to 20 degrees to allow you to highlight features, as well as being fire rated and I-Joist approved for peace of mind after installation. Choose from different bezels and magnetic reflectors to create the desired fitting for your application.
- · Colour switchable, via a switch rear of the downlight
- · Fire-rated in both I-joist and solid timber ceilings
- · 20° adjustable downlight to adjust direction of light
- · Available in mains dimming, DALI or 1-10V
- · Compatible with magnetic reflectors, sold separately
- · Low glare with a UGR of 21
- · Up to 101lm/W for low lifetime running costs
- · Plug & play connector for simple installation
- · Emergency version available
- · Supplied with a silver reflector for optimum performance and low glare
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Number of lamps | 1 |
|---|---|
| Height/depth | 83 mm |
| Unified Glare Rating (UGR) | 21 |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Maximum system power | 10 W |
| Colour temperature | 2700 - 4000 K |
| Width | 124 mm |
| Rated ambient temperature acc. IEC62722-2-1 | 20 °C |
| Nominal voltage | 220 - 240 V |
| With movement sensor | No |
| With light sensor | No |
| Compatible with Amazon Alexa | No |
| Suitable for suspended mounting | No |
| Light source included | Yes |
| Suitable for surface mounting | No |
| Suitable for wall mounting | No |
| Suitable for recessed mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Dimming touch and dim | No |
| Dimming potentiometer (integrated) | No |
|---|---|
| IFTTT support available | No |
| Dimming leading edge | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming 1-10 V | No |
| Compatible with Apple HomeKit | No |
| Dimming DALI-2 | No |
| Dimming LineSwitch | No |
| Dimming trailing edge | No |
| Dimming RF | No |
| Dimming DALI | No |
| Compatible with Google Assistant | No |
| Dimming DMX | No |
| Dimming sine wave reduction | No |
| Dimming 0-10 V | No |
| Dimming DSI | No |
| Dimming programmable | No |
