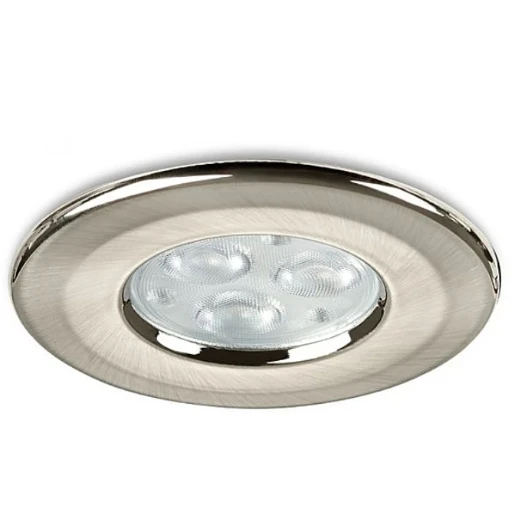

Downlight H2 Pro 550 Beam LED 70° 3000K Easy Fit Connector
Part Number:
2501237458
MPN:
DLE4727030
- Product Type:
- Residential Downlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
Our H2 Pro 550 with easy fit connector features more innovative upgrades for ease of installation and reduced running costs. A slimmer profile allows for easier installation, plus at over 100lm/W this is our most efficient downlight yet. These updates are in addition to the typical H2 Pro quality and features you can depend on; fire-rated, dimmable and available with our seven-year extended warranty. With a choice of two beam angles - 38° and 70°, 11 interchangeable bezel options (four of which have paintable finishes) and an IP65 rating, this downlight is the ideal choice for lighting any room, anywhere. For a quicker, easier and more secure installation, it now comes with a easy fit connector. Featuring loop in loop out technology and piano key push-in connectors, the easy fit connector is ideal for first-fix and minimises risk of damage to fittings during installation. With all the benefits the H2 Pro 550 has to offer and more, the H2 Pro 550 downlight cuts installation time down dramatically.
- · Easy-fit connector
- · Up to 112 lm/W
- · Only 5.2W
- · Mains dimmable
- · Slimline twist & lock bezels (sold separately)
- · Flexible driver position for easy installation
- · Shallow depth of 49mm
- · Insulation coverable
- · Insulation coverable
- · Insulation coverable
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Conductor cross section | - mm² |
|---|---|
| Outer diameter | 90 mm |
| Width | 90 mm |
| Length | 160 mm |
| Number of poles | - |
| Number of lamps | 1 |
| Height/depth | 49 mm |
| Unified Glare Rating (UGR) | 16 |
| Maximum system power | 52 W |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Lamp power | - W |
| Power factor | - |
| Connectable conductor cross section | - mm² |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 3000 - 3000 K |
| Rated ambient temperature acc. IEC62722-2-1 | - - 20 °C |
| With movement sensor | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Suitable for wall mounting | No |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for surface mounting | No |
| Control gear included | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for recessed mounting | Yes |
| Luminaire may be covered with thermally insulating material | Yes |
| Light source included | Yes |
| Dimming Zigbee | No |
| Dimming leading edge | No |
|---|---|
| Dimming RF | No |
| Dimming touch and dim | No |
| Dimming DMX | No |
| Dimming mains voltage modulation | No |
| Dimming DSI | No |
| Dimming with push-button | No |
| IFTTT support available | No |
| Dimming trailing edge | No |
| Suitable for ceiling mounting | Yes |
| Brushed surface | No |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming 0-10 V | No |
| Dimming programmable | No |
| Dimming DALI | No |
| Dimming LineSwitch | No |
| Dimming sine wave reduction | No |
| Dimming DALI-2 | No |
| Suitable for low voltage cable system | No |
| Dimming potentiometer (integrated) | No |
| Dimming 1-10 V | No |
| Dimming manufacturer's proprietary system | No |
