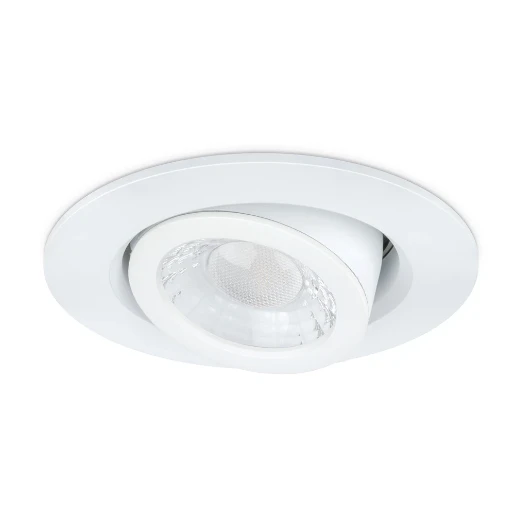

V50 Pro Tilt Bezel For Cut-Out 86mm Fire-Rated LED Downlight
Part Number:
2501547003
MPN:
JC1026/WH
- Product Type:
- Bezels & Converter Plates
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The V50 Pro Tilt Bezel for Cut-Out 86mm Fire-Rated LED Downlight is a versatile and reliable lighting solution that is perfect for a variety of applications. The downlight is fire-rated, making it ideal for use in bathrooms and other areas where fire safety is a concern. It is also low profile, making it a good choice for installation in shallow ceiling voids.The downlight features a slim die-cast aluminum bezel that provides a modern and stylish look. It is also rotatable and tiltable, allowing you to adjust the light to suit your needs. The downlight is available in a variety of color temperatures, so you can choose the perfect light for your space.The V50 Pro Tilt Bezel for Cut-Out 86mm Fire-Rated LED Downlight is a great choice for anyone looking for a reliable and versatile lighting solution. It is perfect for use in a variety of applications, and it is sure to provide you with years of trouble-free service.
- · 600/650 Lumens
- · 80/87 LpcW
- · 350 degree rotatable and 20 degree tiltable
- · Low profile design, for installations in shallow 50mm ceiling voids
- · Strong protected spring clips
- · 20° Tilt and 350° rotation
- · Fast push-fit termination with double hinged remote driver, with colour coded terminals
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Outer diameter | 85 mm |
|---|---|
| Rated life time L70/B50 at 25 °C | 51000 h |
| Number of lamps | 1 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Height/depth | 62.7 mm |
| Number of poles | 3 |
| Maximum system power | 6 W |
| Colour temperature | 3000 - 4000 K |
| Nominal voltage | 30 - 44 V |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 26 °C |
| Light source included | Yes |
|---|---|
| Rated luminous flux according to IEC 62722-2- 1 | 650 - 700 lm |
| Suitable for ceiling mounting | No |
| Suitable for suspended mounting | No |
| Suitable for recessed mounting | Yes |
| Replaceable control gear | Yes |
| Dimming mains voltage modulation | Yes |
| Control gear included | Yes |
| Suitable for surface mounting | No |
| With air slots | Yes |
