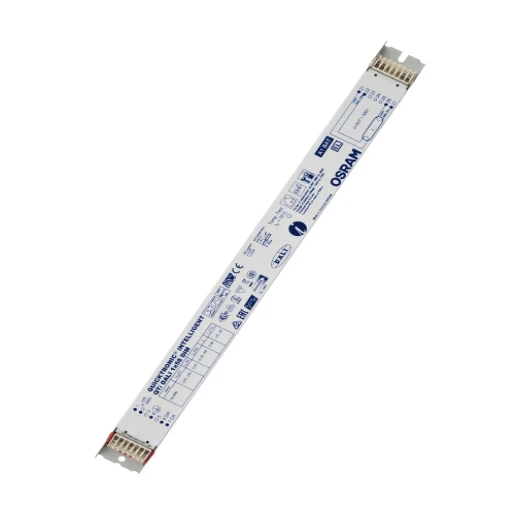

QUICKTRONIC® INTELLIGENT DALI DIM T8 1X58 DIM

ECG dimmable DALI for FL 26 mm. Product features: Corridor function for direct connection of ECG to common motion sensor. Corridor function with pre-programmed light program. Touch DIM® function for free parameterization of light value and turn on time. Fit for SMART GRID for feedback of consumed mains power and lamp operating hours. Fit for Emergency function for automatic detection of emergency lighting by ECG. Very low standby power consumption: < 0.2 W (A1 BAT). Lifetime: > 100,000 h (for T = 65 °C at T_c). Very high number of switching cycles: up to 300,000. Dimming range: 1…100 % (3…100 % with compact fluorescent lamp). POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime. Line frequency: 0 Hz, 50…60 Hz, rectified AC. Product benefits: System+ Guarantee available. Easy integration in luminaire thanks to same dimensions like DALI GI ECG. TouchDIM® function for easy and inexpensive dimming of several ECGs. Same luminous flux with direct and alternating current. Dimming of amalgam lamps without flickering or reduced lifespan. Automatic restart after lamp replacement. No new approvals required. Areas of application: Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100. Installation in emergency lighting systems according to IEC 61347-2-3, appendix J. Industry. Open-plan offices, corridors and storage rooms. Public buildings. Sports halls and factories. Strip lighting. Suitable for luminaires of protection class I.

• · System+ Guarantee available
• · Easy integration in luminaire thanks to same dimensions like DALI GI ECG
• · TouchDIM® function for easy and inexpensive dimming of several ECGs
• · Same luminous flux with direct and alternating current
• · Dimming of amalgam lamps without flickering or reduced lifespan
• · Automatic restart after lamp replacement
• · No new approvals required DALI product features
• · Control via the DALI interface
• · Compliance with the DALI standard to IEC 60929 and IEC 62386
• · Control input protected against overvoltage and polarity reversal (OSRAM ECG) Touch DIM® and Touch DIM® Sensor function
