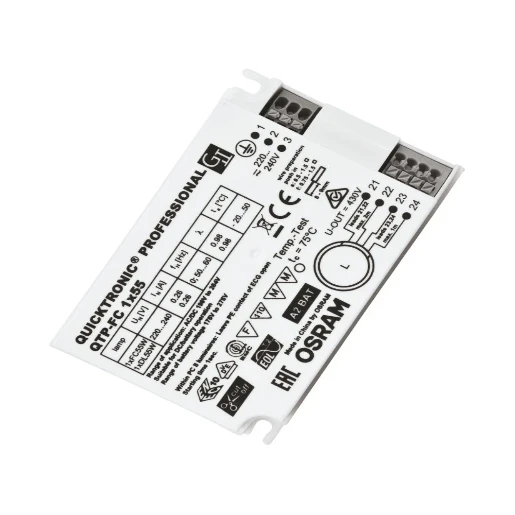

QUICKTRONIC® 1X55
Part Number:
2450271882
MPN:
4008321537041
- Product Type:
- Luminaires & Lighting
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
ECG for circular FL 16 mm. Product features: Supply voltage: 220…240 V. Line voltage: 198…264 V. Line frequency: 0 Hz | 50 Hz | 60 Hz. Lamp start with optimum filament preheating. Energy Efficiency Index EEI: A2 BAT. Automatic shutdown of defective lamps and at end of life (EoL). Lamp operation: to EN 60929. Safety: to EN 61347-2-3. Product benefits: Long lamp life. No adverse effect from frequent on/off switching. Automatic restart after lamp replacement. Perfect lamp start for applications with motion sensors. Separate installations thanks to optional cable clamp for K2 and K3 casings. VDE/VDE EMC certified system. Areas of application: Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100. Open-plan offices, corridors and storage rooms. Public buildings. Suitable for luminaires of protection class I.
- · Long lamp life
- · No adverse effect from frequent on/off switching
- · Automatic restart after lamp replacement
- · Perfect lamp start for applications with motion sensors
- · Separate installations thanks to optional cable clamp for K2 and K3 casings
- · VDE/VDE EMC certified system
Technical Specifications
Technical Specifications
Ballast | |
| Width | 67 mm |
|---|---|
| Height | 31 mm |
| Length | 103 mm |
| Nominal voltage | - - 240 V |
| Lamp power | 59 - 59 W |
| Suitable for lamp power (1 lamp) | 55 - 55 W |
| Suitable for number of lamps | 1 - 1 |
| Suitable for lamp power (2 lamps) | - W |
| Suitable for lamp power (3 lamps) | - W |
| Suitable for lamp power (4 lamps) | - W |
| For lamp type TC-D | No |
| For lamp type TC-DD | No |
| For lamp type TC-L | Yes |
| For lamp type HID | No |
| For lamp type HPMV | No |
| For lamp type HPS | No |
| For lamp type SOX | No |
| Dimming 0-10 V | No |
| Multiwatt model | No |
| For lamp type T2 | No |
| For lamp type T5 | No |
| For lamp type T5-C | Yes |
| For lamp type T8 | No |
| For lamp type T12 | No |
| For lamp type T-R | No |
| For lamp type T-U | No |
| For lamp type TC-DEL | No |
| For lamp type TC-F | No |
|---|---|
| For lamp type TC-S | No |
| For lamp type TC-T | No |
| For lamp type TC-TEL | No |
| Compatible with Apple HomeKit | No |
| With strain relief | No |
| Dimming sine wave reduction | No |
| Dimming RF | No |
| Dimming programmable | No |
| Dimming leading edge | No |
| Dimming mains voltage modulation | No |
| Dimming trailing edge | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming DSI | No |
| IFTTT support available | Yes |
| For lamp type TC-QEL | No |
| For lamp type TC-SEL | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
