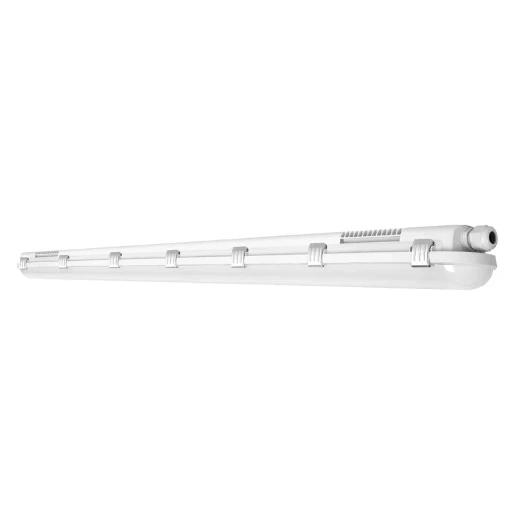

Non-Corrosive EM 1500 81W 865 IP65 GY Grey
Part Number:
2501387092
MPN:
4058075541580
- Product Type:
- Non-Corrosives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledvance damp-proof luminaires has seamless integration of luminaires with emergency lighting function into general lighting and it is suitable for environment such as car parks, underpasses, garages and workshops. The operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time which has easy wiring included prewired driver and battery for emergency lighting function. It is designed with greater energy savings of up to 60% (compared to luminaires that use fluorescent lamps). The colour temperature of 4000K of cool white colour tone will ensure your environment is a pleasant atmosphere. It is easy installation no tools required for connection.
- · Seamless integration of luminaires with emergency lighting function into general lighting
- · Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- · Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- · Convenient visualization of results of automatic test with an included control LED
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing colour | Grey |
|---|---|
| Housing material | Plastic |
| Control gear | Electronic ballast |
| Colour rendering index (CRI/Ra) | 80-89 |
| Light diffuser type | Diffuser |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Impact resistance (IK rating) | IK08 |
| Cover material | Plastic opal |
| Lumen setting adjustable | Discrete positions |
| Protection class according to IEC 61140 | I |
| Type of cabling | Suitable for through wiring |
| Photobiological safety according to EN 62471 | RG0 |
| Connection type | Screwless terminal |
| Housing surface protection | Untreated |
| Colour temperature switchable | No |
| Beam angle adjustable | No |
| Voltage type | AC |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Outer diameter | - mm |
| Length | 1500 mm |
| Width | 82 mm |
| Conductor cross section | - mm² |
| Height/depth | 68 mm |
| Power factor | 0.9 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | - |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Recess length | - mm |
| Flickering value Pst LM | - |
| Max. number of luminaires per miniature circuit breaker C16 | 18 |
| Max. number of luminaires per miniature circuit breaker B16 | 10 |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Number of poles | 3 |
| Maximum system power | 81 W |
| Recess height/depth | - mm |
| Recess diameter | - mm |
| Number of lamps | 0 |
| Recess width | - mm |
| Lamp power | - W |
|---|---|
| Nominal voltage | 220 - 240 V |
| Nominal current | 390 - 390 mA |
| Colour temperature | 6500 - 6500 K |
| Rated ambient temperature acc. IEC62722-2-1 | 5 - 35 °C |
| Light source included | Yes |
| Suitable for surface mounting | Yes |
| With air slots | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for emergency lighting | Yes |
| Control gear included | Yes |
| Suitable for light line configuration | No |
| Fit for workplace acc. EN 12464-1 | No |
| With movement sensor | No |
| Suitable for recessed mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for suspended mounting | Yes |
| With light sensor | No |
| Suitable for wall mounting | Yes |
| Replaceable control gear | No |
| Constant luminous flux control | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming touch and dim | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Bluetooth operated | No |
| Dimming DALI-2 | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Compatible with Casambi | No |
| IFTTT support available | Yes |
