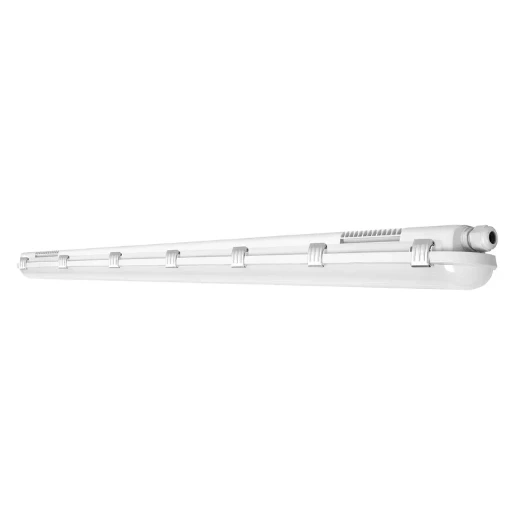

Non-Corrosive EM 1500 46W 865 IP65 GY Grey
Part Number:
2501387088
MPN:
4058075541504
- Product Type:
- Non-Corrosives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledvance damp-proof luminaires has seamless integration of luminaires with emergency lighting function into general lighting and it is suitable for environment such as car parks, underpasses, garages and workshops. The operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time which has easy wiring included prewired driver and battery for emergency lighting function. It is designed with greater energy savings of up to 60% (compared to luminaires that use fluorescent lamps). The colour temperature of 4000K of cool white colour tone will ensure your environment is a pleasant atmosphere. It is easy installation no tools required for connection.
- · Seamless integration of luminaires with emergency lighting function into general lighting
- · Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- · Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- · Convenient visualization of results of automatic test with an included control LED
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing material | Plastic |
|---|---|
| Housing colour | Grey |
| Outer diameter | - mm |
| Length | 1500 mm |
| Conductor cross section | - mm² |
| Height/depth | 68 mm |
| Width | 82 mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Power factor | 0.9 |
| Stroboscope effect value SVM | - |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker C16 | 37 |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Recess height/depth | - mm |
| Recess length | - mm |
| Maximum system power | 46 W |
| Number of lamps | 0 |
| Number of poles | 3 |
| Recess diameter | - mm |
| Recess width | - mm |
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Nominal current | 222 - 222 mA |
| Colour temperature | 6500 - 6500 K |
| Rated ambient temperature acc. IEC62722-2-1 | 5 - 35 °C |
| With light sensor | No |
| With movement sensor | No |
| Suitable for suspended mounting | Yes |
| Light source included | Yes |
| Control gear included | Yes |
|---|---|
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for light line configuration | No |
| Replaceable control gear | No |
| Suitable for emergency lighting | Yes |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Suitable for wall mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for recessed mounting | No |
| IFTTT support available | Yes |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming DALI-2 | No |
| Dimming RF | No |
| Dimming leading edge | No |
| Dimming programmable | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Dimming DALI | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
| Constant luminous flux control | No |
| Compatible with Casambi | No |
