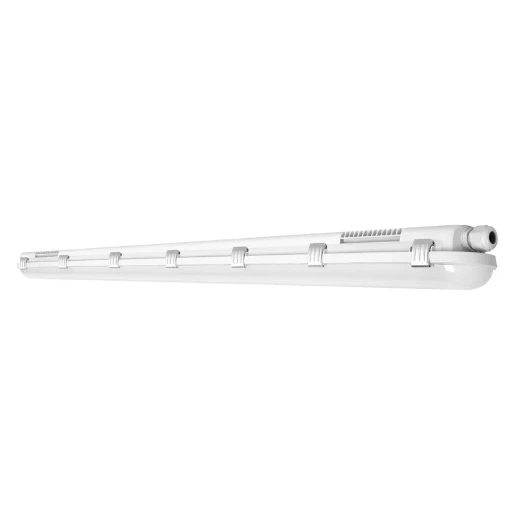

Non-Corrosive EM 1500 26W 865 IP65 GY Grey
Part Number:
2501387085
MPN:
4058075541443
- Product Type:
- Non-Corrosives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledvance damp-proof luminaires has seamless integration of luminaires with emergency lighting function into general lighting and it is suitable for environment such as car parks, underpasses, garages and workshops. The operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time which has easy wiring included prewired driver and battery for emergency lighting function. It is designed with greater energy savings of up to 60% (compared to luminaires that use fluorescent lamps). The colour temperature of 4000K of cool white colour tone will ensure your environment is a pleasant atmosphere. It is easy installation no tools required for connection.
- · Seamless integration of luminaires with emergency lighting function into general lighting
- · Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- · Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- · Convenient visualization of results of automatic test with an included control LED
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing material | Plastic |
|---|---|
| Housing colour | Grey |
| Width | 82 mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Power factor | 0.9 |
| Flickering value Pst LM | - |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Stroboscope effect value SVM | - |
| Recess height/depth | - mm |
| Unified Glare Rating (UGR) | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Maximum system power | 26 W |
| Recess length | - mm |
| Max. number of luminaires per miniature circuit breaker C16 | 71 |
| Max. number of luminaires per miniature circuit breaker B16 | 56 |
| Recess diameter | - mm |
| Number of lamps | 0 |
| Conductor cross section | - mm² |
| Height/depth | 68 mm |
| Number of poles | 3 |
| Recess width | - mm |
| Outer diameter | - mm |
| Length | 1500 mm |
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Nominal current | 125 - 125 mA |
| Colour temperature | 6500 - 6500 K |
| Rated ambient temperature acc. IEC62722-2-1 | 5 - 35 °C |
| Suitable for suspended mounting | Yes |
| With movement sensor | No |
| With light sensor | No |
| Suitable for wall mounting | Yes |
| Constant luminous flux control | No |
|---|---|
| Bluetooth operated | No |
| Compatible with Casambi | No |
| IFTTT support available | Yes |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Light source included | Yes |
| Suitable for surface mounting | Yes |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for light line configuration | No |
| Suitable for recessed mounting | No |
| Suitable for ceiling mounting | Yes |
| Replaceable control gear | No |
| Dimming 0-10 V | No |
| Control gear included | Yes |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for emergency lighting | Yes |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming 1-10 V | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming DALI-2 | No |
| Compatible with Apple HomeKit | No |
| Dimming with push-button | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming programmable | No |
| Dimming RF | No |
