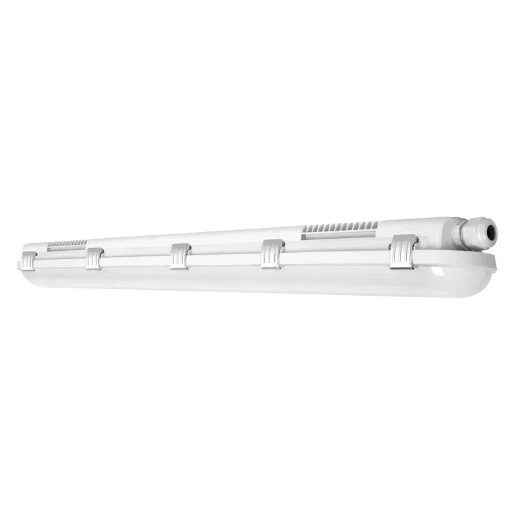

Non-Corrosive EM 1200 32W 865 IP65 GY Grey
Part Number:
2501387082
MPN:
4058075541405
- Product Type:
- Non-Corrosives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledvance damp-proof luminaires has seamless integration of luminaires with emergency lighting function into general lighting and it is suitable for environment such as car parks, underpasses, garages and workshops. The operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time which has easy wiring included prewired driver and battery for emergency lighting function. It is designed with greater energy savings of up to 60% (compared to luminaires that use fluorescent lamps). The colour temperature of 4000K of cool white colour tone will ensure your environment is a pleasant atmosphere. It is easy installation no tools required for connection.
- · Seamless integration of luminaires with emergency lighting function into general lighting
- · Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- · Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- · Convenient visualization of results of automatic test with an included control LED
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing colour | Grey |
|---|---|
| Housing material | Plastic |
| Conductor cross section | - mm² |
| Outer diameter | - mm |
| Height/depth | 68 mm |
| Width | 82 mm |
| Length | 1200 mm |
| Power factor | 0.9 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Stroboscope effect value SVM | - |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | - |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Recess height/depth | - mm |
| Recess length | - mm |
| Max. number of luminaires per miniature circuit breaker C16 | 39 |
| Max. number of luminaires per miniature circuit breaker B16 | 27 |
| Maximum system power | 32 W |
| Recess diameter | - mm |
| Recess width | - mm |
| Number of lamps | 0 |
| Number of poles | 3 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Nominal voltage | 220 - 240 V |
| Lamp power | - W |
| Nominal current | 155 - 155 mA |
| Colour temperature | 6500 - 6500 K |
| Rated ambient temperature acc. IEC62722-2-1 | 5 - 35 °C |
| With movement sensor | No |
| Suitable for suspended mounting | Yes |
| With light sensor | No |
| Suitable for wall mounting | Yes |
| Light source included | Yes |
|---|---|
| Control gear included | Yes |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for emergency lighting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for recessed mounting | No |
| Suitable for surface mounting | Yes |
| Suitable for light line configuration | No |
| Replaceable control gear | No |
| With air slots | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming touch and dim | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Constant luminous flux control | No |
| Compatible with Casambi | No |
| IFTTT support available | Yes |
| Compatible with Amazon Alexa | No |
| Bluetooth operated | No |
| Dimming DALI-2 | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
