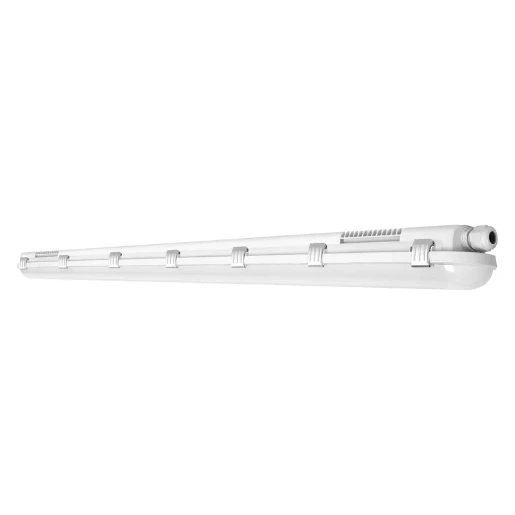

Non-Corrosive 1500 46W 840 IP65 GY Grey
Part Number:
2501387056
MPN:
4058075541207
- Product Type:
- Non-Corrosives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledvance damp-proof luminaires is ideal lighting solution for industrial use and it is suitable for environment such as car parks, underpasses, garages and workshops. It is designed with greater energy savings of up to 60% (compared to luminaires that use fluorescent lamps). The colour temperature of 6500K of cool white colour tone will ensure your environment is a pleasant atmosphere. It is easy installation no tools required for connection.
- · Low flicker = 10 percent
- · Evenly distributed light
- · Energy savings of up to 60 percent (compared to luminaires that use fluorescent lamps
- · Easy installation, no tools required for connection
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing colour | Grey |
|---|---|
| Housing material | Plastic |
| Control gear | Electronic ballast |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Colour rendering index (CRI/Ra) | 80-89 |
| Light diffuser type | Diffuser |
| Cover material | Plastic opal |
| Impact resistance (IK rating) | IK08 |
| Protection class according to IEC 61140 | I |
| Colour of light | White |
| Photobiological safety according to EN 62471 | RG0 |
| Type of cabling | Suitable for through wiring |
| Connection type | Screwless terminal |
| Housing surface protection | Untreated |
| Colour temperature switchable | No |
| Lumen setting adjustable | No |
| Beam angle adjustable | No |
| Light outlet | Direct |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Width | 82 mm |
| Length | 1500 mm |
| Conductor cross section | - mm² |
| Height/depth | 68 mm |
| Outer diameter | - mm |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Recess length | - mm |
| Maximum system power | 46 W |
| Recess height/depth | - mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Max. number of luminaires per miniature circuit breaker C16 | 38 |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Power factor | 0.9 |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | - |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Number of poles | 3 |
| Recess width | - mm |
| Recess diameter | - mm |
| Number of lamps | 0 |
| Lamp power | - W |
|---|---|
| Nominal voltage | 220 - 240 V |
| Nominal current | 340 - 340 mA |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | -25 - 40 °C |
| Light source included | Yes |
| Control gear included | Yes |
| Suitable for surface mounting | Yes |
| Suitable for light line configuration | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for emergency lighting | No |
| With movement sensor | No |
| Suitable for recessed mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for suspended mounting | Yes |
| With light sensor | No |
| Suitable for wall mounting | Yes |
| IFTTT support available | Yes |
| Compatible with Casambi | No |
| Replaceable control gear | No |
| Constant luminous flux control | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| With air slots | No |
| Dimming DALI-2 | No |
| Dimming DALI | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming leading edge | No |
| Dimming programmable | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
