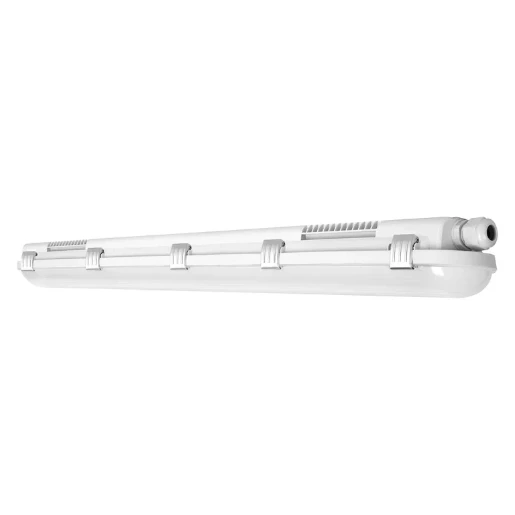

Non-Corrosive 1200 32W 865 IP65 GY Grey
Part Number:
2501387052
MPN:
4058075541122
- Product Type:
- Non-Corrosives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledvance damp-proof luminaires is ideal lighting solution for industrial use and it is suitable for environment such as car parks, underpasses, garages and workshops. It is designed with greater energy savings of up to 60% (compared to luminaires that use fluorescent lamps). The colour temperature of 6500K of cool white colour tone will ensure your environment is a pleasant atmosphere. It is easy installation no tools required for connection.
- · Low flicker = 10 percent
- · Evenly distributed light
- · Energy savings of up to 60 percent (compared to luminaires that use fluorescent lamps
- · Easy installation, no tools required for connection
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing colour | Grey |
|---|---|
| Housing material | Plastic |
| Colour rendering index (CRI/Ra) | 80-89 |
| Control gear | Electronic ballast |
| Light diffuser type | Diffuser |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Cover material | Plastic opal |
| Impact resistance (IK rating) | IK08 |
| Protection class according to IEC 61140 | I |
| Photobiological safety according to EN 62471 | RG0 |
| Housing surface protection | Untreated |
| Type of cabling | Suitable for through wiring |
| Lumen setting adjustable | No |
| Connection type | Screwless terminal |
| Colour temperature switchable | No |
| Voltage type | AC |
| Beam angle adjustable | No |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Width | 82 mm |
| Power factor | 0.9 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Recess height/depth | - mm |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Maximum system power | 32 W |
| Recess length | - mm |
| Max. number of luminaires per miniature circuit breaker C16 | 39 |
| Max. number of luminaires per miniature circuit breaker B16 | 27 |
| Recess diameter | - mm |
| Number of lamps | 0 |
| Number of poles | 3 |
| Recess width | - mm |
| Conductor cross section | - mm² |
| Height/depth | 68 mm |
| Outer diameter | - mm |
| Length | 1200 mm |
| Lamp power | - W |
|---|---|
| Nominal voltage | 220 - 240 V |
| Nominal current | 280 - 280 mA |
| Colour temperature | 6500 - 6500 K |
| Rated ambient temperature acc. IEC62722-2-1 | -25 - 40 °C |
| Suitable for ceiling mounting | Yes |
| Suitable for suspended mounting | Yes |
| With light sensor | No |
| Suitable for recessed mounting | No |
| With movement sensor | No |
| Light source included | Yes |
| Suitable for surface mounting | Yes |
| Suitable for light line configuration | No |
| Suitable for wall mounting | Yes |
| Replaceable control gear | No |
| Dimming 0-10 V | No |
| With air slots | No |
| Dimming DALI-2 | No |
| Dimming 1-10 V | No |
| Constant luminous flux control | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Luminaire may be covered with thermally insulating material | No |
| Control gear included | Yes |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for emergency lighting | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming programmable | No |
| Dimming RF | No |
| IFTTT support available | Yes |
| Compatible with Casambi | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
