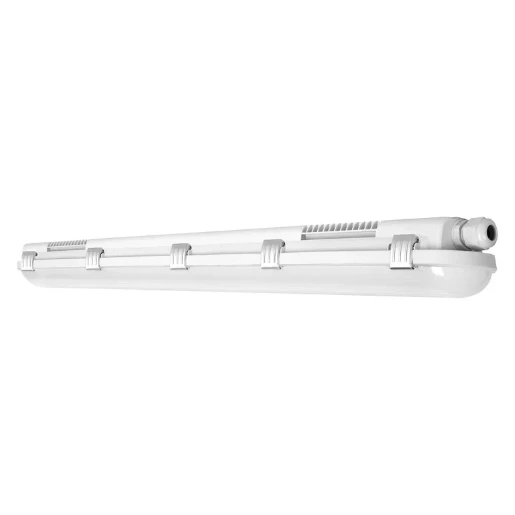

Non-Corrosive 1200 32W 830 IP65 GY Grey
Part Number:
2501387049
MPN:
4058075541085
- Product Type:
- Non-Corrosives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Damp Proof Batten with energy savings of up to 60 % (compared to luminaires that use fluorescent lamps). Ideal for Industrial applications.
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing colour | Grey |
|---|---|
| Control gear | Electronic ballast |
| Housing material | Plastic |
| Colour rendering index (CRI/Ra) | 80-89 |
| Light diffuser type | Diffuser |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Impact resistance (IK rating) | IK08 |
| Protection class according to IEC 61140 | I |
| Cover material | Plastic opal |
| Photobiological safety according to EN 62471 | RG0 |
| Colour of light | White |
| Type of cabling | Suitable for through wiring |
| Connection type | Screwless terminal |
| Housing surface protection | Untreated |
| Beam angle adjustable | No |
| Lumen setting adjustable | No |
| Colour temperature switchable | No |
| Voltage type | AC |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Width | 82 mm |
| Power factor | 0.9 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Recess height/depth | - mm |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | - |
| Max. number of luminaires per miniature circuit breaker C16 | 39 |
| Max. number of luminaires per miniature circuit breaker B16 | 27 |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Maximum system power | 32 W |
| Recess length | - mm |
| Recess diameter | - mm |
| Number of lamps | 0 |
| Conductor cross section | - mm² |
| Height/depth | 68 mm |
| Number of poles | 3 |
| Recess width | - mm |
| Outer diameter | - mm |
| Length | 1200 mm |
| Lamp power | - W |
|---|---|
| Nominal voltage | 220 - 240 V |
| Nominal current | 280 - 280 mA |
| Colour temperature | 3000 - 3000 K |
| Rated ambient temperature acc. IEC62722-2-1 | -25 - 40 °C |
| Light source included | Yes |
| Control gear included | Yes |
| Suitable for light line configuration | No |
| Fit for workplace acc. EN 12464-1 | No |
| With light sensor | No |
| Suitable for surface mounting | Yes |
| Replaceable control gear | No |
| Dimming 0-10 V | No |
| Constant luminous flux control | No |
| Suitable for emergency lighting | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming 1-10 V | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming DALI-2 | No |
| With movement sensor | No |
| Suitable for recessed mounting | No |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for suspended mounting | Yes |
| Compatible with Apple HomeKit | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming touch and dim | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming programmable | No |
| Dimming RF | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | Yes |
| Bluetooth operated | No |
| Compatible with Casambi | No |
